COMPUTER MODULES, INC.

WAN MASTER

Card Type

Serial, T1 DSU

Processor

i960SX

Chipset

Unidentified

Maximum Onboard Memory

256KB SRAM

Data Bus

32-bit PCI

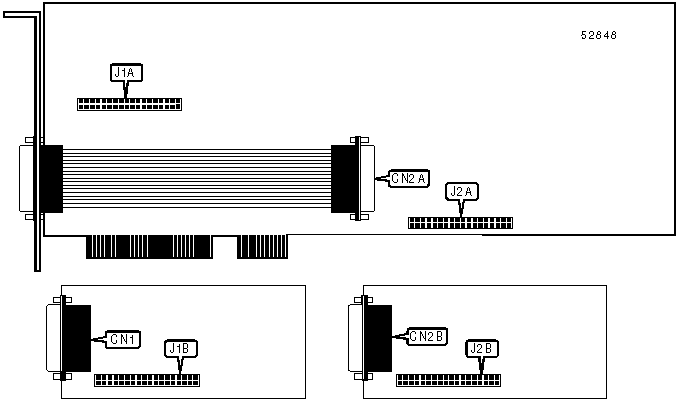

CONNECTIONS

Function

Label

Function

Label

HSSI, RS-232, RS-449/530, X.21, V.35, or T1 DSU port

CN1

Header to main board (on back of card)

J1B

Connector for CN2B

CN2A

Header for daughterboard 2

J2A

HSSI, RS-232, RS-449/530, X.21, V.35, or T1 DSU port

CN2B

Header to main board(on back of card)

J2B

Header for daughterboard 1

J1A
