CARDINAL TECHNOLOGIES, INC.

14400BPS-V.32BIS V.42BIS (INT)

Card Type

Modem (asynchronous)

Chip Set

Unidentified

Maximum Data Rate

14.4Kbps

Data Bus

8-bit ISA

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.32, V.32bis

Error Correction/Compression

MNP5, V.42, V.42bis

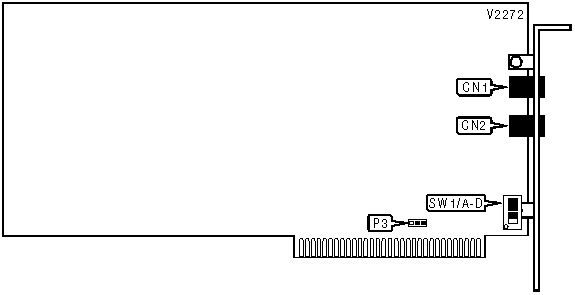

CONNECTIONS

Function

Label

Function

Label

Line out/in

CN1

Line in/out

CN2

SERIAL PORT ADDRESS

Setting

SW1/A

SW1/B

COM1 (3F8h)

On

On

COM2 (2F8h)

Off

On

COM3 (3E8h)

On

Off

COM4 (2E8h)

Off

Off

INTERRUPT SELECTION

Setting

SW1/C

SW1/D

P3/Pins 1 & 2

P3/Pins 2 & 3

2

N/A

N/A

Open

Closed

3

Off

On

N/A

N/A

4

On

Off

N/A

N/A

5

N/A

N/A

Closed

Open

Proprietary AT Command Set

See document V2267 for a full command summary.
