Card Type	Modem (asynchronous)
Chipset	Sierra
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation	Bell 103A, 212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis
Fax Modulation	Unidentified
Error Correction/Compression	MNP5, V.42, V.42bis
Fax Class	Class I & II
Data Bus	8-bit ISA
Card Size	Full height, half length

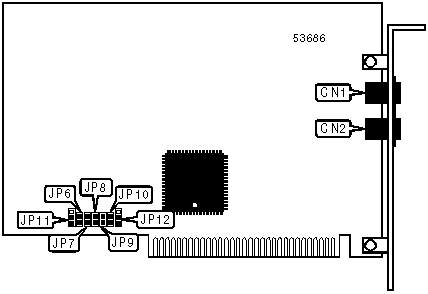

CONNECTIONS
Function	Label	Function	Label
Telephone line	CN1	Telephone line	CN2

USER CONFIGURABLE SETTINGS
Setting	Label	Position
í Factory configured - do not alter	JP9	Open

SERIAL PORT ADDRESS SELECTION
Setting	JP11	JP12
3F8h (COM1:)	Pins 2 & 3 closed	Pins 2 & 3 closed
2F8h (COM2:)	Pins 2 & 3 closed	Pins 1 & 2 closed
3E8h (COM3:)	Pins 1 & 2 closed	Pins 2 & 3 closed
2E8h (COM4:)	Pins 1 & 2 closed	Pins 1 & 2 closed

INTERRUPT SELECTION
Setting	JP6	JP7	JP8	JP10
3	Closed	Open	Open	Open
4	Open	Closed	Open	Open
5	Open	Open	Closed	Open
7	Open	Open	Open	Closed

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, D, E, H, L, M, O, P, Q, T, V, X, Y, Z

&C, &D, &F, &T, &V, &W, &Y, &Z

Extended AT Commands

\Q, \W

%A, %C, %Q

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S12, S18, S25, S26, S38

Note: See MHI help file for complete information.

UNIDENTIFIED COMMANDS
Command	Default
S40	Unidentified
S41	Unidentified
