BANKSIA TECHNOLOGY PTY, LTD.

PRO 34

Card Type

Fax, Modem (synchronous/asynchronous)

Chip Set

Unidentified

Maximum Data Rate

28.8Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

External

Fax Class

Class I & II

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.34

Fax Modulation Protocol

ITU-T V.17, V.27ter, V.29

Error Correction/Compression

MNP5, MNP10, V.42, V.42bis

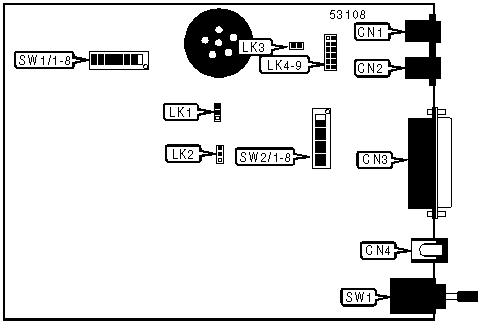

CONNECTIONS

Function

Label

Function

Label

Auxiliary port

CN1

DC power

CN4

Line out

CN2

Power switch

SW1

RS-232/422

CN3



USER CONFIGURABLE SETTINGS

Setting

Label

Position

í DTR signal ignored

SW1/1

On

DTR signal normal

SW1/1

Off

í DCD and DSR forced high

SW1/2

On

DCD and DSR normal

SW1/2

Off

í Echo disabled

SW1/3

On

Echo enabled

SW1/3

Off

í Result codes disabled

SW1/4

On

Result codes enabled

SW1/4

Off

í Leased-line operation

SW1/5

On

Switched line operation

SW1/5

Off

í Auto-answer enabled on 2nd ring

SW1/6

On

Auto-answer disabled on 2nd ring

SW1/6

Off

í Synchronous mode 2 enabled

SW1/7

On

Synchronous mode 2 disabled

SW1/7

Off

í Dumb mode

SW1/8

On

Smart mode

SW1/8

Off

í Flow control to XON/XOFF enabled

SW2/1

On

Flow control to XON/XOFF disabled

SW2/1

Off

í V.25bis command set synchronous HDLC (NRZI) enabled

SW2/2

On

V.25bis command set synchronous HDLC (NRZI) disabled

SW2/2

Off

í Factory configured - DO NOT ALTER

SW2/5

Unidentified

í Factory configured - DO NOT ALTER

SW2/6

Unidentified

í Factory configured - DO NOT ALTER

SW2/7

Unidentified

í Factory defaults loaded up on power-up

SW2/8

On

Do not force factory defaults on power-up

SW2/8

Off

AUXILIARY PORT

Setting

LK1

LK2

LK3

LK4

í PSTN

Pins 2 & 3 closed

Pins 1 & 2 closed

Open

Closed

Leased-line

Pins 1 & 2 closed

Pins 2 & 3 closed

Open

Open

AUXILIARY PORT - CONTINUED

Setting

LK5

LK6

LK7

LK8

LK9

í PSTN

Closed

Closed

Open

Closed

Open

Leased-line

Closed

Open

Closed

Closed

Closed

MODULATION SELECTION

Setting

SW2/3

SW2/4

factory/stored setting

Off

Off

28800 carrier

Off

On

14400 carrier

On

Off

2400 carrier

On

On

SUPPORTED COMMAND SET

Basic AT Commands

AT, ‘Comma’

A, B, E, H, L, M, N, O, P, Q, S, T, V, W, X, Y, Z

&C, &D, &G, &L, &R, &S, &V, &W, &X, &Y, &Z

Extended AT Commands

\B, \G, \J, \V, \Y, \Z

Special Commands

*H, )M

S Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S25, S26, S36, S37, S38

Note: See MHI Help file for full command documentation.

Proprietary AT Command Set

For a full command summary, see BANKSIA TECHNOLOGY PTY, LTD., PRO 144.
