ADC KENTROX
DATASMART MODEL 78772
Card Type |
T1 CSU/DSU |
Chipset |
Unidentified |
T1 Transfer Rate |
1.544Mbps |
T1 Protocol |
Unidentified |
Frame Type |
Unidentified |
Data Bus |
Serial |

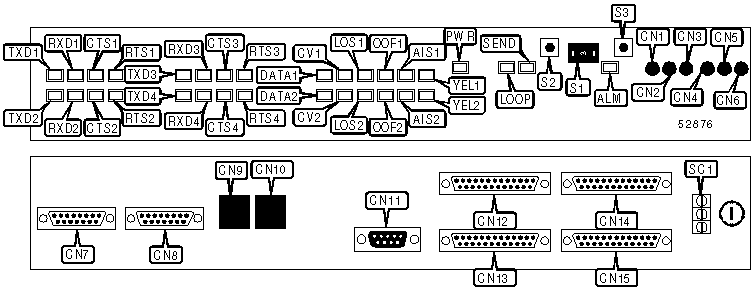

CONNECTIONS | |||
Function |
Label |
Function |
Label |
Monitor receive equalization in jack |
CN1 |
V.24 DTE serial control port |
CN10 |
Monitor receive network out jack |
CN2 |
Auxiliary jack (see pinout below) |
CN11 |
Monitor receive monitor jack |
CN3 |
V.35 serial data port 1 |
CN12 |
Monitor transmit equalization in jack |
CN4 |
V.35 serial data port 2 |
CN13 |
Monitor transmit network out jack |
CN5 |
V.35 serial data port 3 |
CN14 |
Monitor transmit monitor jack |
CN6 |
V.35 serial data port 4 |
CN15 |
T1 line out (network interface) |
CN7 |
ACO switch |
S3 |
T1 line in (terminal interface) |
CN8 |
DC power in (see pinout below) |
SC1 |
V.24 DCE serial control port |
CN9 |
CN1 PINOUT | |||
Function |
Pin |
Function |
Pin |
Positive external clock in |
1 |
Not used |
6 |
Negative external clock in |
2 |
Alarm signal common |
7 |
Chassis ground |
3 |
Normally open alarm contact |
8 |
Signal ground |
4 |
Normally closed alarm contact |
9 |
Unbalanced external clock in |
5 |
SC1 PINOUT | |||
Function |
Screw |
Function |
Screw |
-48DC power in |
1 |
+48DC power in |
3 |
Ground |
2 |
THUMBWEEL FUNCTION SELECTION | |||
Function |
S1 |
S2 |
S3 |
Reset loopback tests |
Position 0 |
Pushed |
Not pushed |
Begin remote line loopback test |
Position 1 |
Pushed |
Not pushed |
Unidentified |
Position 2 |
Pushed |
Not pushed |
Reset to factory defaults and switch settings |
Position 3 |
Pushed for 2 sec. |
Pushed for 2 sec. |
Unidentified |
Position 3 |
Pushed |
Not pushed |
Begin near-end line loopback test |
Position 4 |
Pushed |
Not pushed |
Begin near-end payload loopback test |
Position 5 |
Pushed |
Not pushed |
Begin near-end local loopback test |
Position 6 |
Pushed |
Not pushed |
Unidentified |
Position 7 |
Pushed |
Not pushed |
Send QRST test code |
Position 8 |
Pushed |
Not pushed |
Send 3 in 24 test code |
Position 9 |
Pushed |
Not pushed |
Note:S2 and S3 must always be held for at least one-half of one second for the above functions to take effect. |
DIAGNOSTIC LED(S) | |||
LED |
Color |
Status |
Condition |
TXD1 |
Yellow |
On |
Data port 1 is receiving data from network |
TXD1 |
Yellow |
Off |
Data port 1 is not receiving data from network |
RXD1 |
Yellow |
On |
Data port 1 is transmitting data to network |
RXD1 |
Yellow |
Off |
Data port 1 is not transmitting data to network |
CTS1 |
Yellow |
On |
Data port 1 CTS is high |
CTS1 |
Yellow |
Off |
Data port 1 CTS is low |
RTS1 |
Yellow |
On |
Data port 1 RTS is high |
RTS1 |
Yellow |
Off |
Data port 1 RTS is low |
TXD2 |
Yellow |
On |
Data port 2 is receiving data from network |
TXD2 |
Yellow |
Off |
Data port 2 is not receiving data from network |
RXD2 |
Yellow |
On |
Data port 2 is transmitting data to network |
RXD2 |
Yellow |
Off |
Data port 2 is not transmitting data to network |
CTS2 |
Yellow |
On |
Data port 2 CTS is high |
CTS2 |
Yellow |
Off |
Data port 2 CTS is low |
RTS2 |
Yellow |
On |
Data port 2 RTS is high |
RTS2 |
Yellow |
Off |
Data port 2 RTS is low |
TXD3 |
Yellow |
On |
Data port 3 is receiving data from network |
TXD3 |
Yellow |
Off |
Data port 3 is not receiving data from network |
RXD3 |
Yellow |
On |
Data port 3 is transmitting data to network |
RXD3 |
Yellow |
Off |
Data port 3 is not transmitting data to network |
CTS3 |
Yellow |
On |
Data port 3 CTS is high |
CTS3 |
Yellow |
Off |
Data port 3 CTS is low |
RTS3 |
Yellow |
On |
Data port 3 RTS is high |
RTS3 |
Yellow |
Off |
Data port 3 RTS is low |
TXD4 |
Yellow |
On |
Data port 4 is receiving data from network |
TXD4 |
Yellow |
Off |
Data port 4 is not receiving data from network |
DIAGNOSTIC LED(S) (CON’T) | |||
LED |
Color |
Status |
Condition |
RXD4 |
Yellow |
On |
Data port 4 is transmitting data to network |
RXD4 |
Yellow |
Off |
Data port 4 is not transmitting data to network |
CTS4 |
Yellow |
On |
Data port 4 CTS is high |
CTS4 |
Yellow |
Off |
Data port 4 CTS is low |
RTS4 |
Yellow |
On |
Data port 4 RTS is high |
RTS4 |
Yellow |
Off |
Data port 4 RTS is low |
DATA1 |
Green |
On |
Valid data signal detected on T1 network interface |
DATA1 |
Green |
Blinking |
Network Set, Reset, or Test code detected on T1 network interface |
DATA1 |
Green |
Off |
No valid signal detected on T1 network interface |
CV1 |
Red |
On |
Code Violation error detected on T1 network interface |
CV1 |
Red |
Off |
Code Violation error not detected on T1 network interface |
LOS1 |
Red |
On |
Loss Of Signal condition detected on T1 network interface |
LOS1 |
Red |
Off |
Loss Of Signal condition not detected on T1 network interface |
OOF1 |
Red |
On |
Signal is out of frame synchronization on T1 network interface |
OOF1 |
Red |
Off |
Signal is not out of frame synchronization on T1 network interface |
AIS1 |
Red |
On |
Alarm Indication Signal condition detected on T1 network interface |
AIS1 |
Red |
Blinking |
Alarm Indication Signal being transmitted to T1 network interface |
AIS1 |
Red |
Off |
Alarm Indication Signal condition not detected on T1 network interface |
YEL1 |
Yellow |
On |
Remote Yellow Alarm condition detected on T1 network interface |
YEL1 |
Yellow |
Blinking |
Local Yellow Alarm condition detected on T1 network interface |
YEL1 |
Yellow |
Off |
Yellow Alarm condition not detected on T1 network interface |
DATA2 |
Green |
On |
Valid data signal detected on T1 terminal interface |
DATA2 |
Green |
Blinking |
Network Set, Reset, or Test code detected on T1 terminal interface |
DATA2 |
Green |
Off |
No valid signal detected on T1 terminal interface |
CV2 |
Red |
On |
Code Violation error detected on T1 terminal interface |
CV2 |
Red |
Off |
Code Violation error not detected on T1 terminal interface |
DIAGNOSTIC LED(S) (CON’T) | |||
LED |
Color |
Status |
Condition |
LOS2 |
Red |
On |
Loss Of Signal condition detected on T1 terminal interface |
LOS2 |
Red |
Off |
Loss Of Signal condition not detected on T1 terminal interface |
OOF2 |
Red |
On |
Signal is out of frame synchronization on T1 terminal interface |
OOF2 |
Red |
Off |
Signal is not out of frame synchronization on T1 terminal interface |
AIS2 |
Red |
On |
Alarm Indication Signal condition detected on T1 terminal interface |
AIS2 |
Red |
Blinking |
Alarm Indication Signal being transmitted to T1 terminal interface |
AIS2 |
Red |
Off |
Alarm Indication Signal condition not detected on T1 terminal interface |
YEL2 |
Yellow |
On |
Remote Yellow Alarm condition detected on T1 terminal interface |
YEL2 |
Yellow |
Blinking |
Local Yellow Alarm condition detected on T1 terminal interface |
YEL2 |
Yellow |
Off |
Yellow Alarm condition not detected on T1 terminal interface |
PWR |
Green |
On |
Power is on |
PWR |
Red |
On |
Self-test failed |
PWR |
Red |
Blinking |
Serious problem has occurred |
PWR |
N/A |
Off |
Power is off |
LOOP |
Yellow |
On |
Local loopback test in progress |
LOOP |
Yellow |
Blinking |
Remote loopback test in progress |
LOOP |
Yellow |
Off |
Loopback test not in progress |
SEND |
Yellow |
On |
Test code being sent |
SEND |
Yellow |
Blinking |
Remote loopback test may be in progress but cannot be verified |
SEND |
Yellow |
Off |
Test code not being sent |
ALM |
Red |
On |
Alarm condition detected and awaiting user intervention |
ALM |
Green |
On |
Alarm condition detected; user intervention in progress |
ALM |
Red |
Blinking |
Serious problem has occurred |
ALM |
N/A |
Off |
Alarm condition not detected |
