BOCA RESEARCH, INC.
BOCA OFFICE COMMUNICATOR V.34 (FDVSP34I)
|
Card Type |
Modem/speakerphone |
|
Chip Set |
Unidentified |
|
Maximum Data Rate |
28.8Kbps |
|
Maximum Fax Rate |
14.4Kbps |
|
Data Bus |
8 bit ISA |
|
Fax Class |
Class I & II |
|
Data Modulation Protocol |
Bell 103A/212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis, V.34 Rockwell V.FC |
|
Fax Modulation Protocol |
ITU-T V.17, V.21CH2, V.27ter, V.29 |
|
Error Correction/Compression |
MNP5, V.42, V.42bis |
|

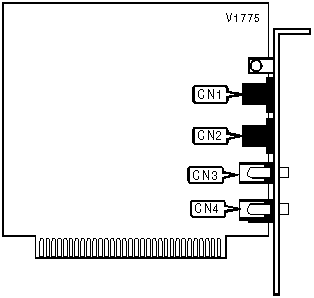

CONNECTIONS | ||||||
|
Function |
Label |
Function |
Label | |||
|
Line in |
CN1 |
Microphone |
CN3 | |||
|
Line out |
CN2 |
Speaker |
CN4 | |||
Proprietary AT Command Set
|
AUTO RETRAIN FALLBACK/FALLFORWARD | ||
|
Type |
Configuration | |
|
Format |
AT [cmds] %En [cmds] | |
|
Description |
Controls auto retrain mode and fallback/fallforward | |
|
Command |
Function | |
|
%E0 |
Auto retrain disabled | |
|
%E1 |
Auto retrain enabled | |
|
í %E2 |
Auto retrain and fallback/fallforward enabled | |
|
BREAK SEND | |
|
Type |
Configuration |
|
Format |
AT [cmds] \Bn [cmds] |
|
Default |
3 |
|
Range |
1-9 |
|
Unit |
.1 second |
|
Description |
Sends break of n length to remote modem |
|
BREAK TYPE | |||||
|
Type: |
Configuration | ||||
|
Format: |
AT [cmds] \Kn [cmds] | ||||
|
Description: |
Configures action of break signal. | ||||
|
Command |
Break from DTE while in reliable mode |
Break from DTE while in normal mode |
Break from DTE while in direct mode | ||
|
\K0 |
Enter command mode, do not send break to remote modem |
Buffers cleared and break sent to remote modem |
Send break and enter command mode | ||
|
\K1 |
Buffers cleared and break sent to remote modem |
Buffers cleared and break sent to remote modem |
Send break and enter command mode | ||
|
\K2 |
Enter command mode, do not send break to remote modem |
Send break to remote modem immediately |
Send break to remote modem immediately | ||
|
\K3 |
Send break to remote modem immediately |
Send break to remote modem immediately |
Send break and enter command mode | ||
|
\K4 |
Enter command mode, do not send break to remote modem |
Send break to remote modem with transmitted data |
Send break to remote modem immediately | ||
|
í \K5 |
Send break with transmitted data |
Send break to remote modem with transmitted data |
Send break to remote modem immediately | ||
|
COMPRESSION | |
|
Type |
Configuration |
|
Format |
AT [cmds] %Cn [cmds] |
|
Description |
Selects data compression |
|
Command |
Function |
|
%C0 |
Data compression disabled |
|
%C1 |
MNP5 enabled |
|
%C2 |
V.42bis enabled |
|
í %C3 |
MNP5 and V.42bis enabled |
|
FAX TRANSMIT LEVEL | |
|
Type |
Register |
|
Format |
AT [cmds] S92=n [cmds] |
|
Default |
10 |
|
Range |
0-15 |
|
Unit |
-1dBm |
|
Description |
Controls fax transmission level |
|
FLASH DIAL MODIFIER TIME | |
|
Type |
Register |
|
Format |
AT [cmds] S29=n [cmds] |
|
Default |
10 |
|
Range |
0-255 |
|
Unit |
1ms |
|
Description |
Time the modem will go on-hook upon receiving the ! dial modifier in dial string |
|
FLOW CONTROL CHARACTER - XOFF | |
|
Type |
Register |
|
Format |
AT [cmds] S33=n [cmds] |
|
Default |
19 |
|
Range |
0-255 |
|
Unit |
ASCII |
|
Description |
Sets the character used to represent XOFF |
|
FLOW CONTROL CHARACTER - XON | |
|
Type |
Register |
|
Format |
AT [cmds] S32=n [cmds] |
|
Default |
17 |
|
Range |
0-255 |
|
Unit |
ASCII |
|
Description |
Sets the character used to represent XON |
|
LINE SIGNAL LEVEL | |
|
Type |
Immediate |
|
Format |
AT [cmds] %L [cmds] |
|
Range |
009-043 |
|
Unit |
-1dBm |
|
Description |
Reports received signal level |
|
MAXIMUM BLOCK SIZE FOR TRANSMISSION | ||
|
Type |
Configuration | |
|
Format |
AT [cmds] \An [cmds] | |
|
Description |
Sets the maximum transmittable block size. | |
|
Command |
Function | |
|
\A0 |
Maximum MNP block size is 64 characters. | |
|
í \A1 |
Maximum MNP block size is 128 characters. | |
|
\A2 |
Maximum MNP block size is 192 characters. | |
|
\A3 |
Maximum MNP block size is 256 characters. | |
|
MODEM PROTOCOL | ||
|
Type |
Configuration | |
|
Format |
AT [cmds] \Nn [cmds] | |
|
Description |
Sets connect mode | |
|
Command |
Function | |
|
\N0 |
Normal mode enabled | |
|
\N1 |
Direct mode enabled | |
|
\N2 |
Reliable mode enabled | |
|
í \N3 |
MNP or normal mode enabled | |
|
\N4 |
LAP-M reliable enabled | |
|
\N5 |
MNP reliable mode enabled | |
|
PROTOCOL/SPEED | ||
|
Type |
Register | |
|
Format |
AT [cmds] S37=n [cmds] | |
|
Description |
Selects switched line speed | |
|
Command |
Function | |
|
í S37=0 |
Connect at highest common speed | |
|
S37=1 |
Connect at 300bps | |
|
S37=2 |
Connect at 300bps | |
|
S37=3 |
Connect at 300bps | |
|
S37=4 |
Not used | |
|
S37=5 |
Connect at 1200bps | |
|
S37=6 |
Connect at 2400bps | |
|
S37=7 |
Connect at V.23 | |
|
S37=8 |
Connect at 4800bps | |
|
S37=9 |
Connect at 9600bps | |
|
S37=10 |
Connect at 12.0Kbps | |
|
S37=11 |
Connect at 14.4Kbps | |
|
S37=12 |
Connect at 7200bps | |
|
REPORT SIGNAL QUALITY | |
|
Type |
Immediate |
|
Format |
AT [cmds] %Q [cmds] |
|
Description |
Reports signal quality. Retrain threshold is 008 or greater. |
|
SLEEP INACTIVITY TIMER | |
|
Type |
Register |
|
Format |
AT [cmds] S24=n [cmds] |
|
Default |
0 |
|
Range |
0-255 |
|
Unit |
Second |
|
Description |
Maximum duration of DTE and DCE inactivity allowed prior to initiating low-power sleep mode |
|
BIT MAPPED REGISTERS | |
|
Register |
Default |
|
S14 |
138 |
|
S16 |
0 |
|
S21 |
4 |
|
S22 |
117 |
|
S23 |
54 |
|
S27 |
9 |
|
S28 |
0 |
|
S31 |
2 |
|
S39 |
3 |
|
S40 |
105 |
|
S41 |
3 |
