BOCA RESEARCH, INC.

BOCAMODEM FM96ED

Modem Type

Data (asynchronous)/Fax

Maximum Data Rate

2400bps

Maximum Fax Rate

9600bps

Data Bus

External

Fax Class

Class I

Data Modulation Protocol

Bell 103A/212A

ITU-T V.22, V.22bis

Fax Modulation Protocol

V.27ter, V.29

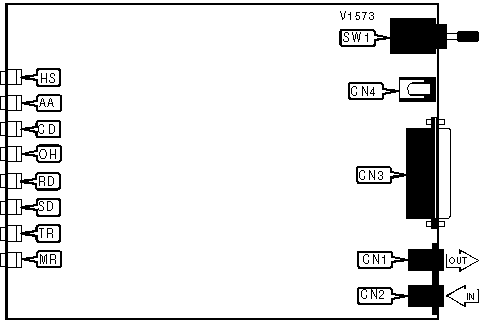

CONNECTIONS

Purpose

Location

Purpose

Location

Line out

CN1

DC power

CN4

Line in

CN2

Power switch

SW1

RS-232/422

CN3



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

HS

Red

On

Modem is operating at 4800bps or faster

HS

Red

Off

Modem is operating at slower than 4800bps

AA

Red

On

Auto-answer enabled

AA

Red

Off

Auto-answer disabled

CD

Red

On

Carrier signal detected

CD

Red

Off

Carrier signal not detected

OH

Red

On

Modem is off-hook

OH

Red

Off

Modem is on-hook

RD

Red

Blinking

Modem is receiving data

RD

Red

Off

Modem is not receiving data

SD

Red

Blinking

Modem is transmitting data

SD

Red

Off

Modem is not transmitting data

TR

Red

On

DTR signal is high

TR

Red

Off

DTR signal is low

MR

Red

On

Power is on

MR

Red

Off

Power is off
