AST RESEARCH, INC.

G-7 ADVANTAGE! PLUS FAX/MODEM

Modem Type

Data (Asynchronous/Synchronous)/Fax

Maximum Data Rate

2400 bps

Maximum Fax Rate

Unidentified

Data Bus

8-bit ISA

Fax Class

Class 1

Data Modulation Protocol

Unidentified

Fax Modulation Protocol

Unidentified

Error Correction/Compression

Unidentified

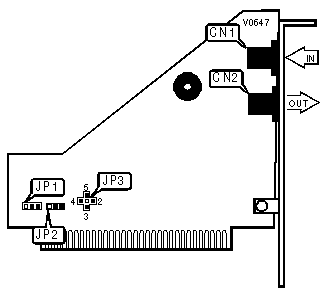

CONNECTIONS

Purpose

Location

Purpose

Location

Line in

CN1

Line out

CN2

COM PORT/ADDRESS SETTINGS

COM

JP1

JP2

COM1/3F8h

Pins 2 & 3 closed

Pins 2 & 3 closed

COM2/2F8h

Pins 1 & 2 closed

Pins 2 & 3 closed

COM3/3E8h

Pins 2 & 3 closed

Pins 1 & 2 closed

COM4/2E8h

Pins 1 & 2 closed

Pins 1 & 2 closed

Note: JP2 on the G6 model is horizontally positions.

INTERRUPT SETTINGS

IRQ

JP3

IRQ3

Pins 1 & 4 closed

IRQ4

Pins 1 & 3 closed

IRQ5

Pins 1 & 2 closed

IRQ7

Pins 1 & 5 closed
