AST RESEARCH, INC.

G-4 ADVANTAGE! PLUS FAX/MODEM

Modem Type

Data (Asynchronous)/Fax

Maximum Data Rate

2400 bps

Maximum Fax Rate

Unidentified

Data Bus

8-bit ISA

Fax Class

Class 2

Data Modulation Protocol

Unidentified

Fax Modulation Protocol

Unidentified

Error Correction/Compression

Unidentified

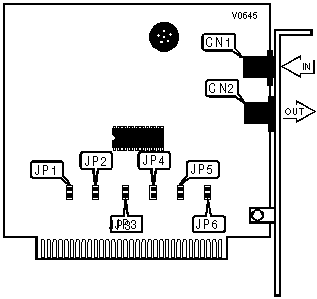

CONNECTIONS

Purpose

Location

Purpose

Location

Line in

CN1

Line out

CN2

COM PORT/INTERRUPT SETTINGS

COM

JP1

JP2

JP3

JP4

JP5

JP6

COM1/IRQ4

Closed

Open

Closed

Closed

Open

Open

COM2/IRQ3

Closed

Open

Open

Open

Closed

Closed

COM3/IRQ4

Open

Closed

Closed

Closed

Open

Open

COM4/IRQ3

Open

Closed

Open

Open

Closed

Closed
