UNIDENTIFIED

E2820, E2850

Device Type

Internal CD-ROM

Interface

ATAPI

Spin Rate

8x

Formats Supported Read

CD-DA, CD-ROM (mode 1 & 2), CD-XA (mode 2, form 1 & 2), Video-CD, CD-I/FMV, Photo-CD, CD Plus

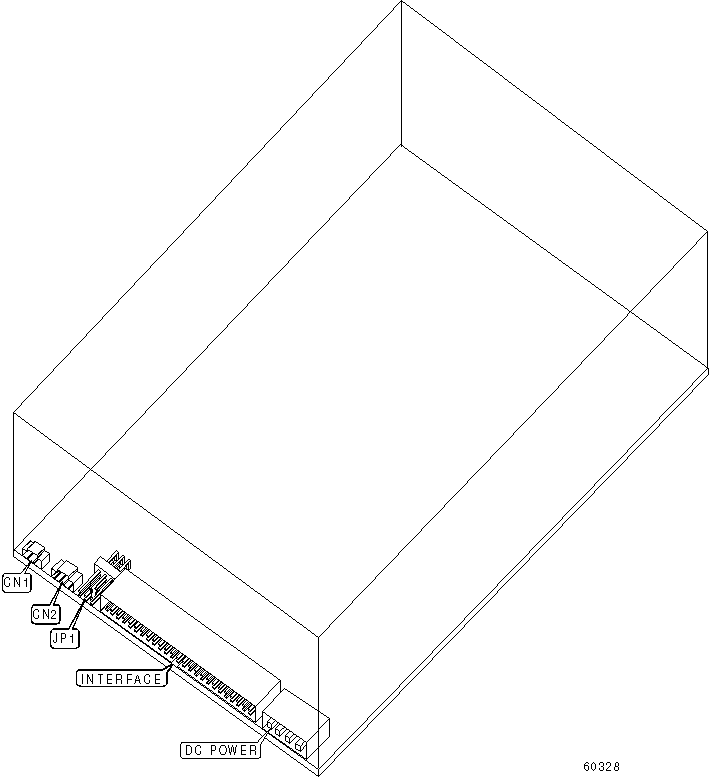

View

Top

CONNECTIONS

Function

Label

Function

Label

Digital audio line out

CN1

Analog audio line out

CN2

ATAPI MASTER/SLAVE

Setting

JP1

Drive is master

Pins 1 & 2 closed

Drive is slave

Pins 3 & 4 closed

Master/slave determined by cable select

Pins 5 & 6 closed
