Device Type	External CD-ROM
Interface	SCSI-2
Spin Rate (Read/Write)	12x (read)/1x, 2x, 4x (write)
Formats Supported Read	CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD
Formats Supported Write	CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD

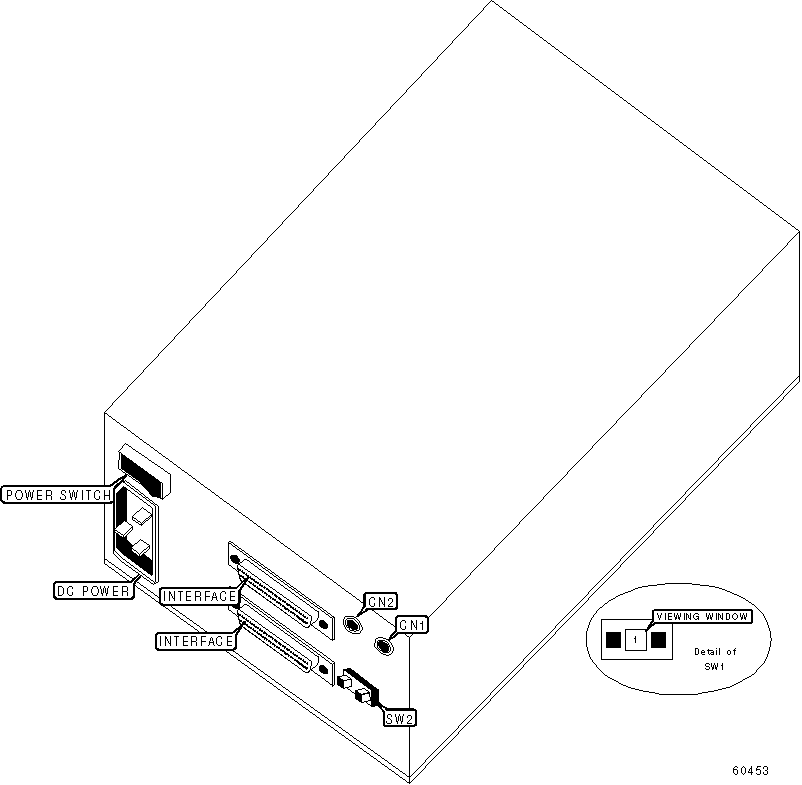

View	Top

CONNECTIONS
Function	Label	Function	Label
Audio line out - right	CN1	Audio line out - left	CN2

DRIVE SELECT ID

Note: To set the SCSI ID, press the buttons on SW2 until the preferred SCSI ID number appears in the view window.
