Device Type

Internal CD-ROM

Interface

SCSI-2

Spin Rate (Read)

24x

Formats Supported Read

CD-XA, CD-DA, CD-R, CD-RW, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus

View

Top

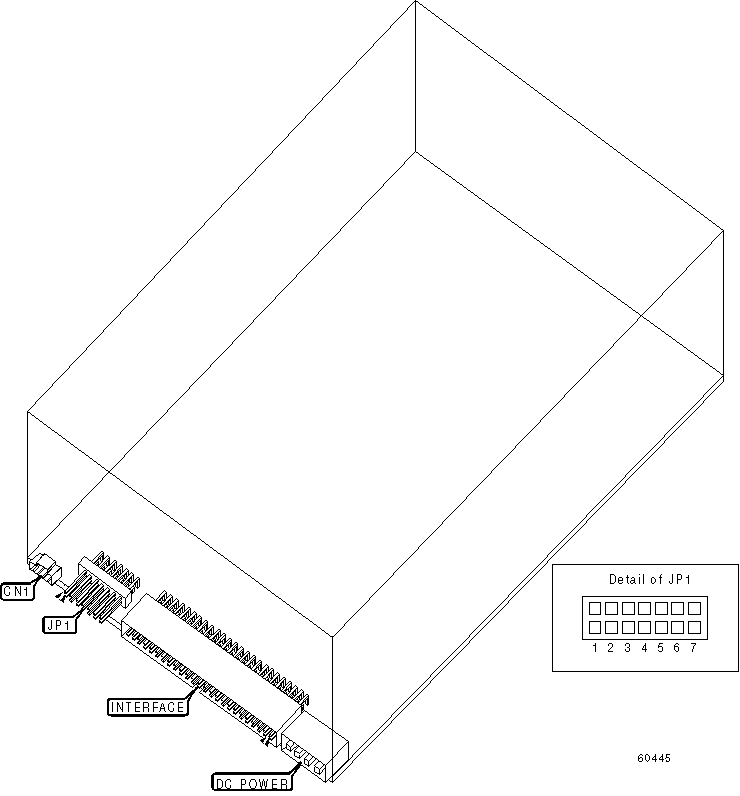

CONNECTIONS

Function

Label

Analog audio line out

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

» Parity check enabled

JP1/1

Closed

Parity check disabled

JP1/1

Open

» Termination disabled

JP1/5

Open

Termination enabled

JP1/5

Closed

» CD tray lock disabled

JP1/6

Open

CD tray lock enabled

JP1/6

Closed

» Factory configured - do not alter

JP1/7

Unidentified

DRIVE SELECT ID

Drive ID

JP1/2

JP1/3

JP1/4

0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

» 3

Closed

Closed

Open

4

Open

Open

Closed

5

Closed

Open

Closed

6

Open

Closed

Closed

7

Closed

Closed

Closed
