SONY CORPORATION

CDU-621

Device Type

Internal CD-ROM

Interface

ATAPI

Spin Rate

12x/24x

Formats Supported Read

CD-XA, CD-DA, CD-R, CD-I, CD-I Bridge, CD-G, Photo-CD, Video CD, Red & Yellow Book, CD-E

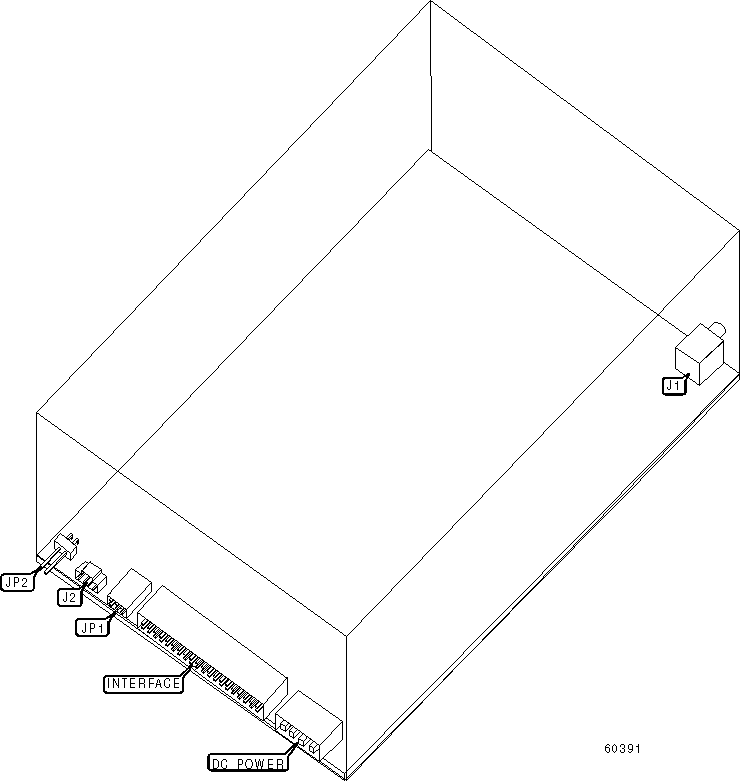

View

Top

CONNECTIONS

Function

Label

Function

Label

Headphone jack

J1

Digital audio out

J2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP2

Unidentified

ATAPI MASTER/SLAVE

Setting

JP1/ Pins 1 & 2

JP1/Pins 3 & 4

JP1/Pins 5 & 6

Master in two drive system

Open

Open

Closed

Slave in two drive system

Open

Closed

Open

Master/Slave cable select

Closed

Open

Open
