TEAC CORPORATION
CD-516S
|
Device Type |
CD-ROM |
|
Interface |
SCSI-2 |
|
Spin Rate (Read/Write) |
16x |
|
Formats Supported Read |
CD-DA, CD-ROM (Mode 1 & Mode 2), CD-ROM XA MODE-2(FORM-1, FORM-2), Photo-CD, CD-I, Video-CD, CD-PLUS, Red & Yellow Book |
|

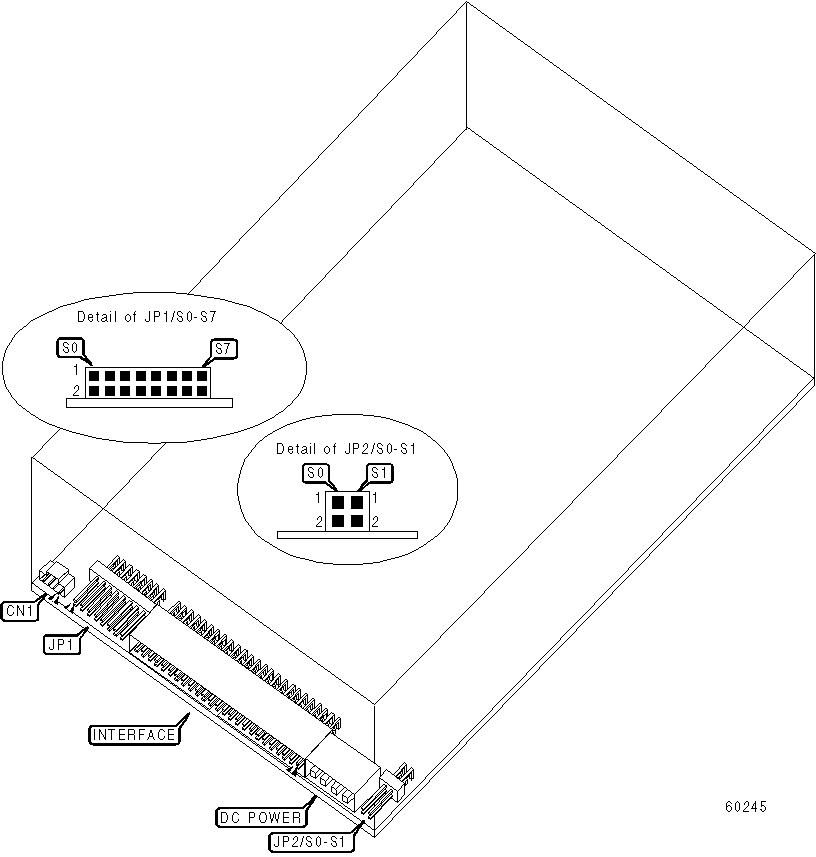

View |
Top |
|
CONNECTIONS | |
|
Function |
Label |
|
Audio out connector |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Parity enabled |
JP1/S3 |
Open |
|
Parity disabled |
JP1/S3 |
Closed | |
| » |
Termination enabled |
JP1/S4 |
Closed |
|
Termination disabled |
JP1/S4 |
Open | |
| » |
Factory configured – do not alter. (Work-station compatibility) |
JP1/S5 |
Open |
| » |
Fast transfer speed enabled |
JP1/S6 |
Open |
|
Slow transfer speed enabled |
JP1/S6 |
Closed | |
| » |
Factory configured – do not alter. (Test mode) |
JP1/S7 |
Open |
| » |
Factory configured – do not alter. |
JP2/S0 |
Unidentified |
| » |
Factory configured – do not alter. |
JP2/S1 |
Unidentified |
|
DRIVE SELECT ID | |||
|
Drive ID |
JP1/S0 |
JP1/S1 |
JP1/S2 |
|
0 |
Open |
Open |
Open |
|
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open |
|
3 |
Closed |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed |
|
6 |
Open |
Closed |
Closed |
|
7 |
Closed |
Closed |
Closed |
