TOSHIBA

TXM3401E1 (SCSI SWITCH)

Device Type

CD-ROM

Interface

SCSI (2)

Size

238 x 70 x 222mm

Spin Rate

1x, 2x

Formats Supported

CD-XA, CD-I Ready, CD Bridge, Photo CD, Red book, Yellow book

View

Top

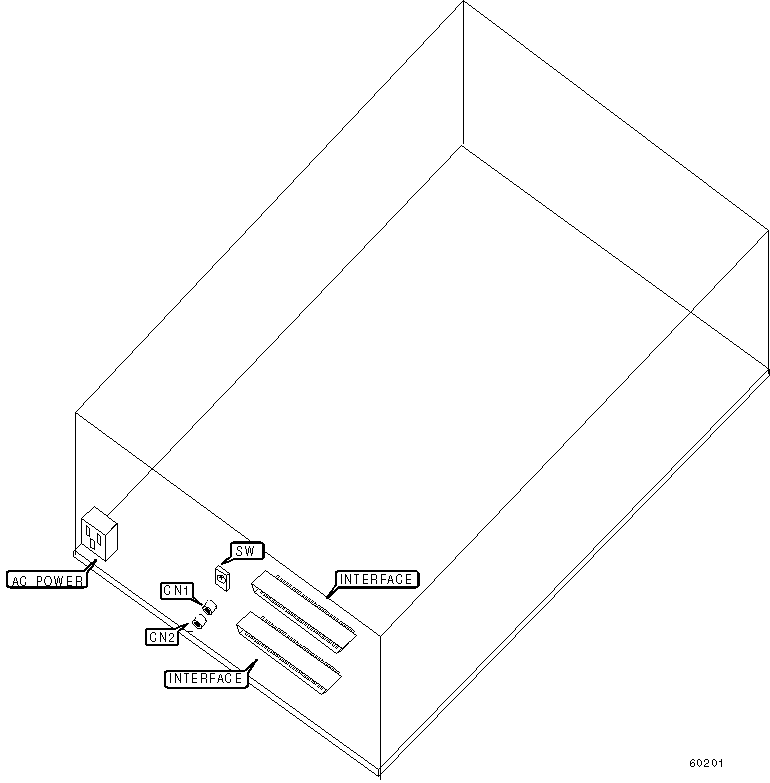

CONNECTIONS

Function

Label

Function

Label

Audio out - left channel

CN1

Audio out - right channel

CN2

MISCELLANEOUS TECHNICAL NOTES

The SCSI ID switch (SW) is used to select the drive ID. The number in the window corresponds to the selected SCSI ID. To change the SCSI ID, press the "+" or "-" lever for higher or lower number. After the "7" ID there are 2 blank spots, the first is for "Play audio CD" mode, the second is not used at this time.

To change SCSI ID turn power off/on for the change to take effect.
