TEAC CORPORATION

CD-56E

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

6x

Formats Supported

CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Audio CD

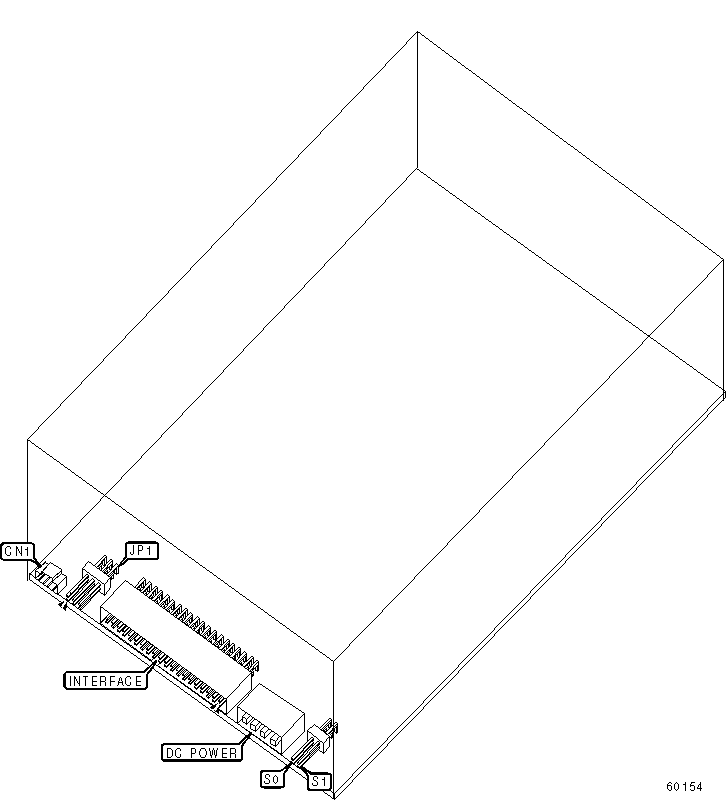

View

Top

CONNECTIONS

Function

Label

Audio line out

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

S0

Open



Allow insertion and removal of CD’s by command or eject button

S1

Closed



Prevent insertion and removal of CD’s

S1

Open

ATAPI MASTER/SLAVE

Setting

JP1/1

JP1/2

JP1/3



Single drive only

Open

Open

Closed

»

Master in two drive system

Open

Open

Closed



Slave in two drive system

Open

Closed

Open



Cable Select

Closed

Open

Open
