TOSHIBA

XM-5401B

Device Type

CD-ROM

Interface

SCSI

Spin Rate

4x

Formats Supported

CD-XA, CD-I, Photo-CD, Video CD, Red & Yellow Book, CD-G, Multi-session

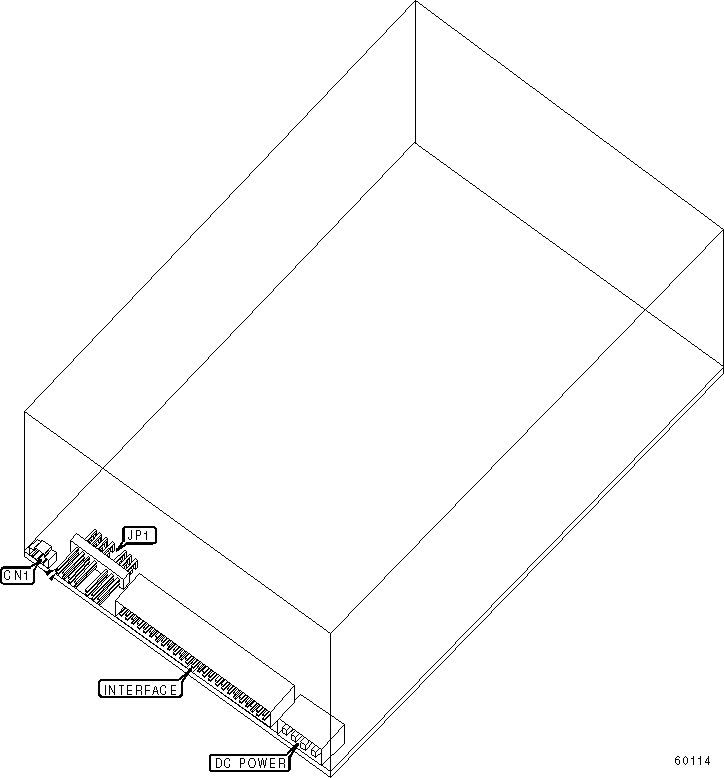

View

Top

CONNECTIONS

Function

Label

Audio line out

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Parity check disabled

JP1/4

Open



Parity check enabled

JP1/4

Closed

»

Allow insertion and removal of CD’s by command or eject button

JP1/5

Open



Prevent insertion and removal of CD’s

JP1/5

Closed

»

Normal operation mode

JP1/6

Open



CD-Audio playback mode (ID must be set at 0)

JP1/6

Closed

»

Termination enabled

JP1/7

Open



Termination disabled

JP1/7

Closed

DRIVE SELECT ID

Drive ID

JP1/1

JP1/2

JP1/3

0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

3

Closed

Closed

Open

4

Open

Open

Closed

5

Closed

Open

Closed

6

Open

Closed

Closed

7

Closed

Closed

Closed
