PLEXTOR

PX-40TSI INTERNAL

Device Type

Internal CD-ROM

Interface

SCSI

Spin Rate (Read)

40x

Formats Supported Read

CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus, CD-E

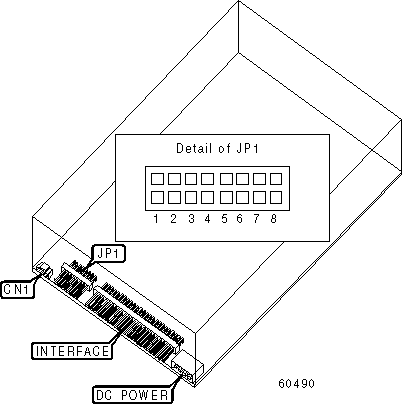

View

Top

CONNECTIONS

Function

Label

Audio line out

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Parity check enabled

JP1/4

Closed



Parity check disabled

JP1/4

Open

»

Termination enabled

JP1/5

Closed



Termination disabled

JP1/5

Open

»

Factory configured - do not alter

JP1/6

Open

»

Block disabled

JP1/7

Open



Block enabled

JP1/7

Closed

»

Eject disabled

JP1/8

Closed



Eject enabled

JP1/8

Open

SCSI SELECT ID

SCSI ID

JP1/1

JP1/2

JP1/3



0

Open

Open

Open



1

Closed

Open

Open



2

Open

Closed

Open

»

3

Closed

Closed

Open



4

Open

Open

Closed



5

Closed

Open

Closed



6

Open

Closed

Closed



7

Closed

Closed

Closed
