PANASONIC INDUSTRIAL COMPANY
LF1004AB
|
Device Type |
CD-ROM |
|
Interface |
SCSI |
|
Spin Rate |
4x |
|
Formats Supported |
CD-XA (mode 2, Form 1 & Form 2), CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD |
|

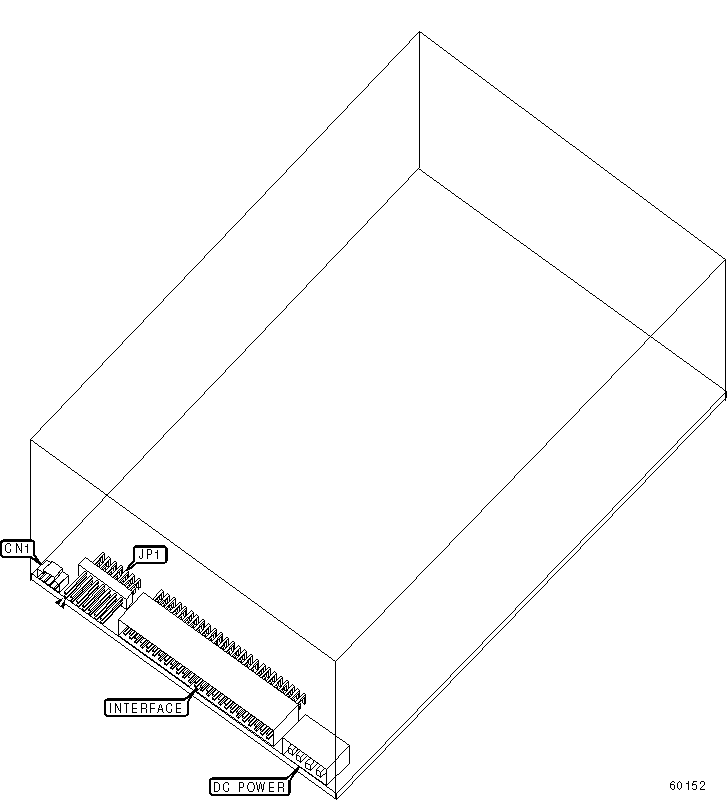

View |
Top |
|
CONNECTIONS | |
|
Function |
Label |
|
Audio line out |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
LUN type select IBM PC/AT or compatible |
JP1/1 |
Open |
|
LUN type select Macintosh |
JP1/1 |
Closed | |
| » |
Factory configured - do not alter |
JP1/5 |
Unidentified |
| » |
Termination enabled |
JP1/6 |
Closed |
|
Termination disabled |
JP1/6 |
Open | |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP1/2 |
JP1/3 |
JP1/4 | |
|
O |
Open |
Open |
Open | |
|
1 |
Closed |
Open |
Open | |
|
2 |
Open |
Closed |
Open | |
|
3 |
Closed |
Closed |
Open | |
| » |
4 |
Open |
Open |
Closed |
|
5 |
Closed |
Open |
Closed | |
|
6 |
Open |
Closed |
Closed | |
|
TERMINATION POWER SELECTION | |
|
Setting |
JP1/7 |
|
TERMPWR supplied by drive |
Closed |
|
TERMPWR supplied by SCSI interface to drive |
Open |
