NEC TECHNOLOGIES, INC.

CDR-84-1

Device Type

CD-ROM

Interface

SCSI

Spin Rate

2X

Formats Supported

CD-XA, Photo-CD, High Sierra, ISO 9660, Apple HFS, Music CD

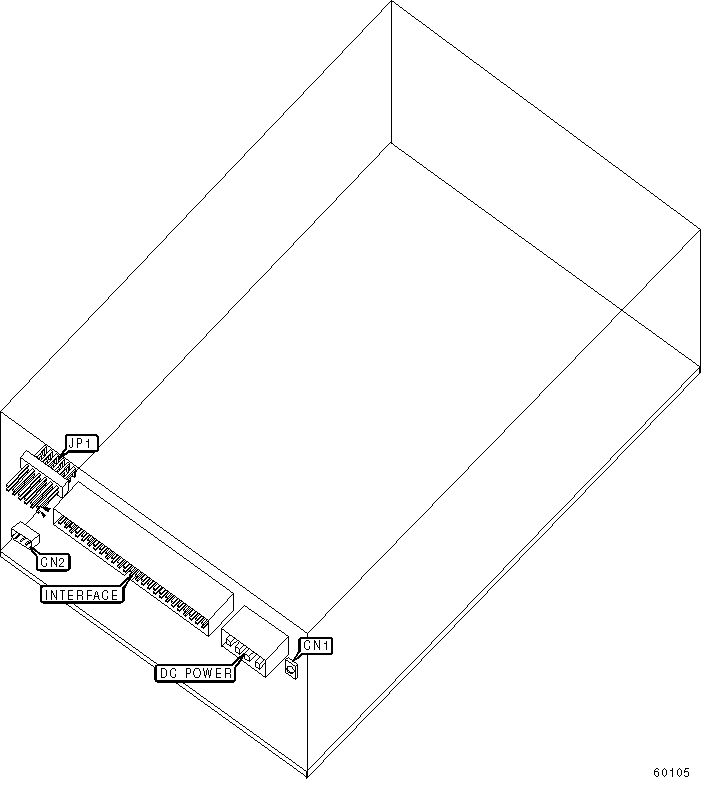

View

Top

CONNECTIONS

Function

Label

Function

Label

Ground terminal

CN1

Audio line out

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP1/4

Open

»

Termination enabled

JP1/5

Closed



Termination disabled

JP1/5

Open

»

SCSI 2 enabled

JP1/6

Closed



SCSI 1 enabled

JP1/6

Open

DRIVE SELECT ID

Drive ID

JP1/1

JP1/2

JP1/3

0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

3

Closed

Closed

Open

4

Open

Open

Closed

5

Closed

Open

Closed

6

Open

Closed

Closed

7

Closed

Closed

Closed
