NEC TECHNOLOGIES, INC.

CDR-80

Device Type

CD-ROM

Interface

SCSI

Spin Rate

Unidentified

Formats Supported

Unidentified

View

Top

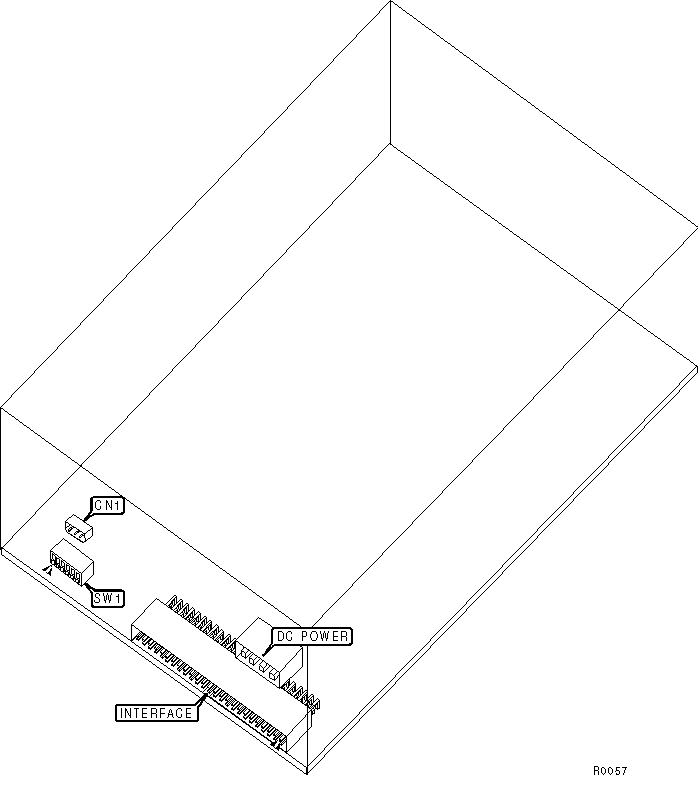

CONNECTIONS

Function

Label

Audio line out

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Parity check enabled

SW1/4

Off



Parity check disabled

SW1/4

On

»

Arbitration system enable

SW1/5

Off



Arbitration system disable

SW1/5

On



Factory configured - do not alter

SW1/6

Off

Note: The exact function of SW1/5 for the systems arbitration use is unidentified.

DRIVE SELECT ID

Drive ID

SW1/1

SW1/2

SW1/3

0

Off

Off

Off

1

On

Off

Off

2

Off

On

Off

3

On

On

Off

4

Off

Off

On

5

On

Off

On

6

Off

On

On

7

On

On

On
