ELITEGROUP COMPUTER SYSTEMS, INC.

ECS-12X TTD CD-ROM

Device Type

CD-ROM

Interface

ATAPI

Spin Rate (Read/Write)

12x

Formats Supported Read

CD-DA, CD-ROM (Mode 1 & Mode 2), CD-ROM XA, Photo-CD, CD-I, Video-CD, CD-PLUS, Red & Yellow Book

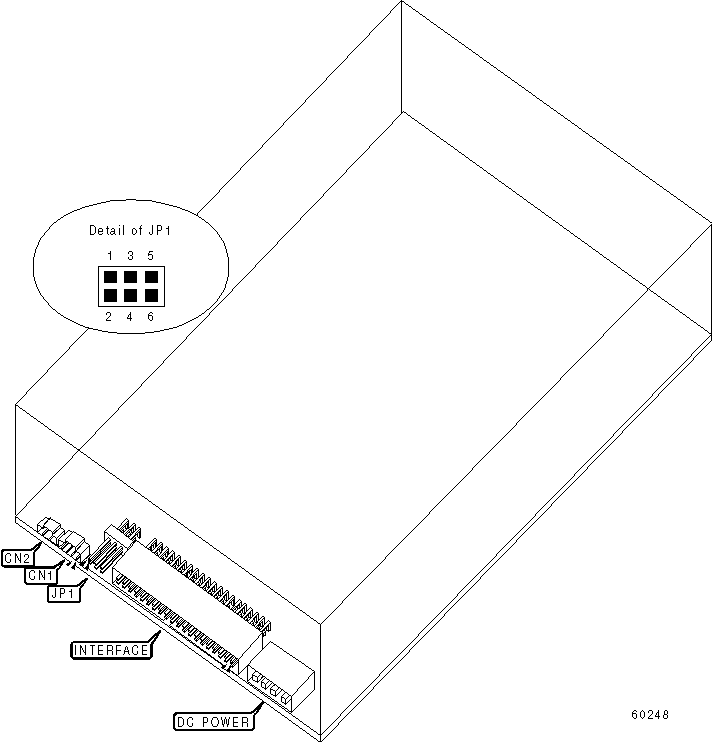

View

Top

CONNECTIONS

Function

Label

Function

Label

Audio out connector

CN1

Digital audio out connector

CN2

ATAPI MASTER/SLAVE

Setting

JP1

»

Drive is master

Pins 5 & 6 closed



Drive is slave

Pins 3 & 4 closed



Master/slave determined by cable select

Pins 1 & 2 closed
