CREATIVE LABS, INC.

BLASTER CD 4X

Device Type

CD-ROM

Interface

ATAPI

Spin Rate

4x

Formats Supported

Unidentified

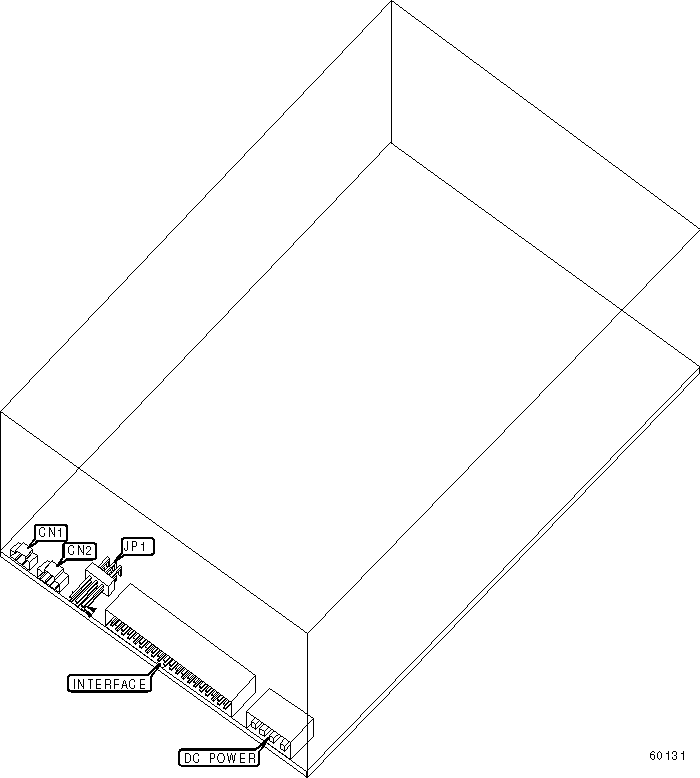

View

Top

CONNECTIONS

Function

Label

Function

Label

Digital audio connector

CN1

CD audio connector

CN2

ATAPI MASTER/SLAVE

Setting

JP1/1

JP1/2

JP1/3

Single drive only

Closed

Open

Open

Master in two drive system

Open

Open

Closed

Slave in two drive system

Open

Closed

Open
