Device Type	Internal CD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	6x/2x
Formats Supported Read	CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus, CD-RW, Mixed mode, I-TRAX, UDF, Bootable
Formats Supported Write	CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus, CD-RW, Mixed mode, I-TRAX, UDF, Bootable

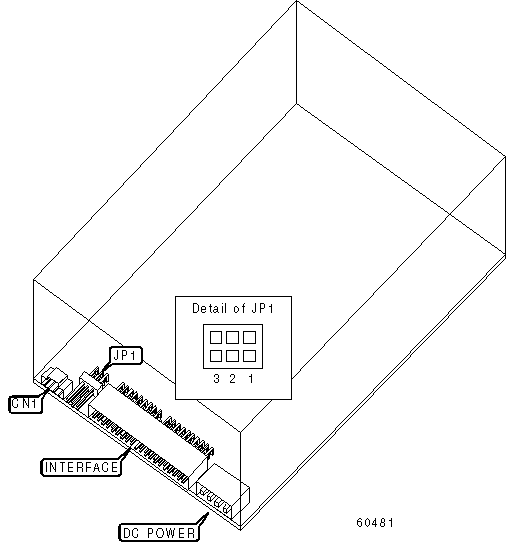

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

ATAPI MASTER/SLAVE SELECTION
Setting
Master/Slave determined by cable select	Pins 3 & 6 closed
Slave in two drive system	Pins 2 & 5 closed
Master in two drive system	Pins 1 & 4 closed
