SEAGATE TECHNOLOGY, INC.

PEREGRINE 4586NP

Device Type

Internal Tape Drive

Interface

SCSI-2

Format

DDS-2, DDS-DC

Sustained Transfer Rate

400 KBPS (compressed 800 KBPS)

Size

5.25 in. half height

View

Top

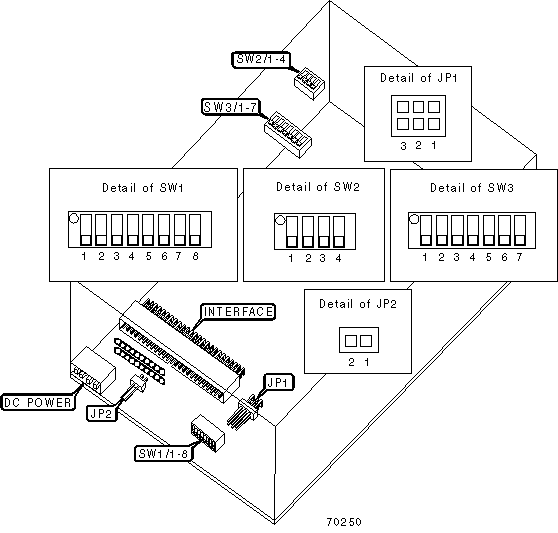

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Termination disabled

JP2

Open



Termination enabled

JP2

Closed

»

All mode enabled

SW1/4

On



MRS mode enabled

SW1/4

Off

»

Parity check disabled

SW1/5

Off



Parity check enabled

SW1/5

On

»

DDS-DC pass through mode enabled

SW1/6

Off



DDS pass through mode enabled

SW1/6

On

»

Factory configured - do not alter

SW1/7

Reserved

»

Self test disabled

SW1/8

Off



Self test enabled

SW1/8

On

»

Drive mounted horizontaly

SW2/1

Off



Drive mounted verticaly

SW2/1

On

»

Automatic insertion of first cartridge enabled

SW2/2

On



Automatic insertion of first cartridge disabled

SW2/2

Off

»

Factory configured - do not alter

SW2/3

Reserved

»

Factory configured - do not alter

SW2/4

Reserved

»

Continuous cycle disabled

SW3/3

Off



Continuous cycle enabled

SW3/3

On

»

Display intensity light

SW3/4

On



Display intensity normal

SW3/4

Off

»

Self-test sequence disabled

SW3/5

Off



Self-test sequence enabled

SW3/5

On

»

Factory configured - do not alter

SW3/6

Reserved

»

Factory configured - do not alter

SW3/7

Reserved

EXTERNAL SCSI ID SELECTION

SCSI ID

JP1/1

JP1/2

JP1/3

»

0

Off

Off

Off



1

Off

Off

On



2

Off

On

Off



3

Off

On

On



4

On

Off

Off



5

On

Off

On



6

On

On

Off



7

On

On

On

Note: If SCSI ID is set using SW1/1 - SW1/3, then the external SCSI ID (JP1) must be set to 0.

SCSI ID SELECTION

SCSI ID

SW1/1

SW1/2

SW1/3

»

0

Off

Off

Off



1

Off

Off

On



2

Off

On

Off



3

Off

On

On



4

On

Off

Off



5

On

Off

On



6

On

On

Off



7

On

On

On

Note: If SCSI ID is set using SW1/1 - SW1/3, then the external SCSI ID (JP1) must be set to 0.

LANGUAGE SELECTION

Language

SW3/1

SW3/2

»

English

On

Off



French

Off

On



German

Off

Off



Spanish

On

On

MANUFACTURERS RECOMMENDED MEDIA

Tape

Capacity Without Compression

Capacity With Compression

90 meter DDS-2 DAT cartridge

24 GB

48 GB

120 meter DDS-2 DAT cartridge

48 GB

96 GB
