SEAGATE TECHNOLOGY, INC.
SCORPION 24 STD224000N
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI-2 |
|
Format |
DAT, DDS-2, DDS-3, DDS-DC |
|
Sustained Transfer Rate |
1,100 KBPS |
|
Size |
5.25 in. half height |
|

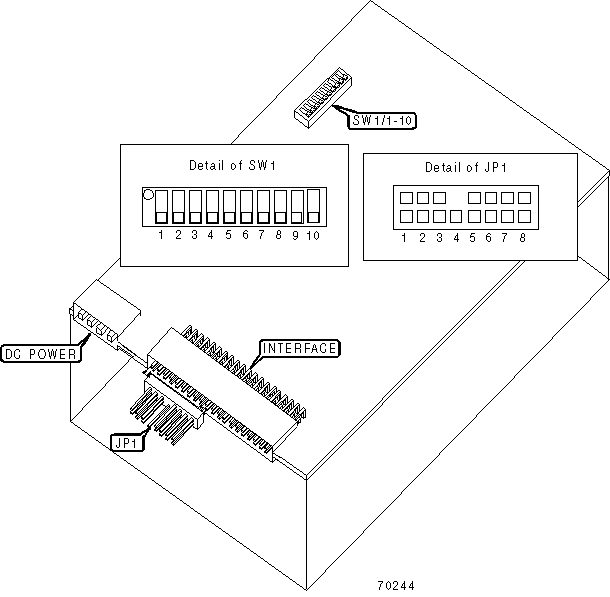

View |
Bottom |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Media recognition system disabled |
SW1/4 |
On |
|
Media recognition system enabled |
SW1/4 |
Off | |
| » |
Parity check disabled |
SW1/5 |
Off |
|
Parity check enabled |
SW1/5 |
On | |
| » |
DDS pass-through mode disabled |
SW1/6 |
Off |
|
DDS pass-through mode enabled |
SW1/6 |
On | |
| » |
Seagate inquiry string enabled |
SW1/7 |
On |
|
Archive inquiry string enabled |
SW1/7 |
Off | |
| » |
Power-on self-test mode disabled |
SW1/8 |
Off |
|
Power-on self-test mode enabled |
SW1/8 |
On | |
| » |
Factory configured - do not alter |
SW1/9 |
Reserved |
| » |
Factory configured - do not alter |
SW1/10 |
Reserved |
| » |
Factory configured - do not alter |
JP1/4 |
Reserved |
| » |
DC disabled |
JP1/5 |
Closed |
|
DC enabled |
JP1/5 |
Open | |
| » |
Active terminator enabled |
JP1/6 |
Closed |
|
Active terminator disabled |
JP1/6 |
Open | |
| » |
Factory configured - do not alter |
JP1/7 |
Reserved |
| » |
Termination power on |
JP1/8 |
Closed |
|
Termination power off |
JP1/8 |
Open | |
|
SCSI ID SELECTION | |||||||
|
SCSI ID |
SW1/1 |
SW1/2 |
SW1/3 |
JP1/1 |
JP1/2 |
JP1/3 | |
| » |
0 |
Off |
Off |
Off |
Open |
Open |
Open |
|
1 |
On |
Off |
Off |
Closed |
Open |
Open | |
|
2 |
Off |
On |
Off |
Open |
Closed |
Open | |
|
3 |
On |
On |
Off |
Closed |
Closed |
Open | |
|
4 |
Off |
Off |
On |
Open |
Open |
Closed | |
|
5 |
On |
Off |
On |
Closed |
Open |
Closed | |
|
6 |
Off |
On |
On |
Open |
Closed |
Closed | |
|
7 |
On |
On |
On |
Closed |
Closed |
Closed | |
|
MANUFACTURERS RECOMMENDED MEDIA | ||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
90 meter DDS-3 DAT |
2GB |
4GB |
|
120 meter DDS-3 DAT |
4GB |
8GB |
|
125 meter DDS-3 DAT |
12GB |
24GB |
