SEAGATE TECHNOLOGY, INC.

HORNET 8 STT28000A-R, STT28000A-RFT, STT28000A-M

Device Type

Internal Tape Drive

Interface

ATAPI

Format

TRAVAN TR-4

Sustained Transfer Rate

600/450/300 KBPS

Size

5.25 in. half height

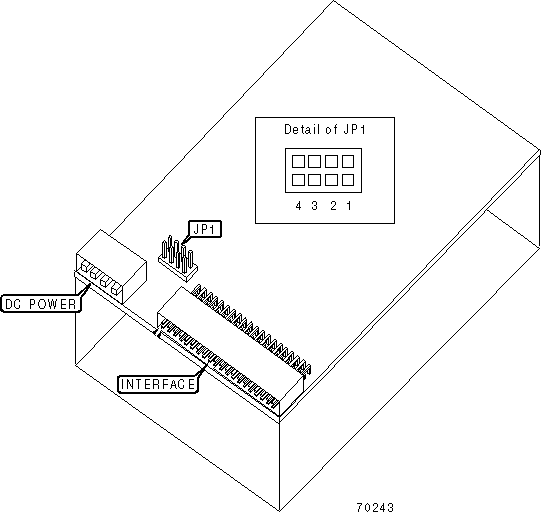

View

Bottom

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP1/1

Reserved

ATAPI MASTER/SLAVE SELECTION

Setting

JP1/2

JP1/3

JP1/4

Master in two drive system

Closed

Open

Open

Slave in two drive system

Open

Closed

Open

Master/Slave determined by cable select

Open

Open

Closed

MANUFACTURERS RECOMMENDED MEDIA

Tape

Capacity Without Compression

Capacity With Compression

Travan T4

4GB

8GB
