FUJITSU CORPORATION

M2488

Device Type

External Tape Drive

Interface

SCSI-2 Fast/Wide

Format

Unidentified

Sustained Transfer Rate

20 MBPS

Size

5.25 in. full height

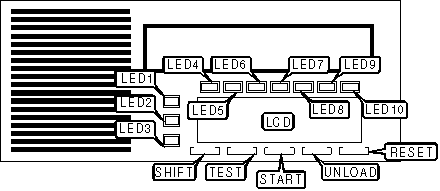

View

Top

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Prompts user to load the cartridge.

LED1

Unidentified

Off

Cartridge is loaded

LED2

Unidentified

On

Drive is selected on the SCSI bus

LED2

Unidentified

Off

Drive is not selected on the SCSI bus

LED3

Unidentified

On

The drive is reading/writing compressed data

LED3

Unidentified

Off

The drive is reading/writing uncompressed data

Note: LED’s 4 through 10 each represent the different tape positions between BOT and EOT. When the tape is moving in the forward position, the LED’s light up sequentially starting from the BOT position. When the tape is moving in reverse, the LED’s light up sequentially in the reverse order.

MISCELLANEOUS TECHNICAL NOTES

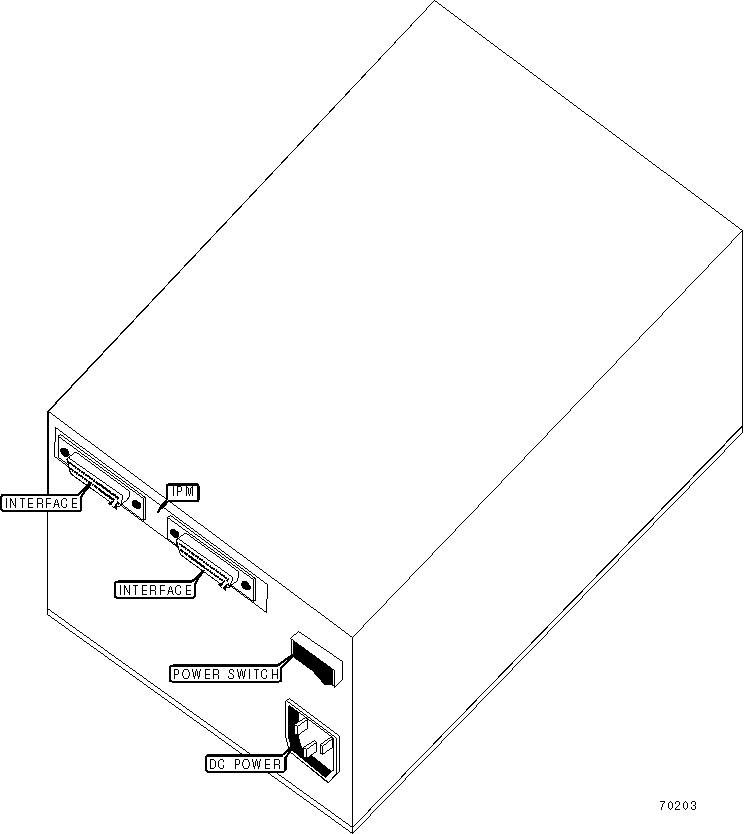

The IPM is an adapter card that is available in four different configurations: 50-pin SCSI connector (2x), 68-pin SCSI connector (2x), 50-pin SCSI connector & Terminating Resistor, 68-pin SCSI connector & Terminating Resistor. The Termination Power is supplied by the SCSI interface through pin 36. This setting is only valid with this specific IPM installed.
