Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	PCMCIA Type II

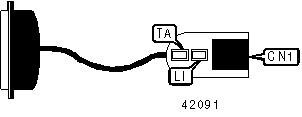

CONNECTIONS
Function	Label
RJ-45 Unshielded twisted pair connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TA	Yellow	On	Data is being transmitted/received
TA	Yellow	Off	Data is not being transmitted/received
LI	Green	On	10Base-T UTP link is good
LI	Green	Off	10Base-T UTP link is broken
LI	Orange	On	100Base-TX UTP link is good
LI	Orange	Off	100Base-TX UTP link is broken
