NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

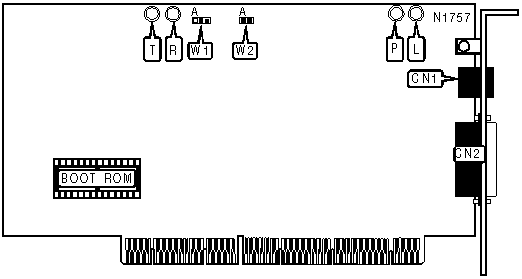

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port	CN1	AUI transceiver via DB-15 port	CN2

USER CONFIGURABLE SETTINGS
Base I/O		IRQ	Shared RAM	W1/A	W1/B	W1/C
	240h	Software	Software	Closed	Open	Open
»	280h	3	D0000h	Open	Closed	Open
	300h	10	CC000h	Open	Open	Closed

ROM CONFIGURATION
ROM Base Address		W2/A	W2/B
»	None/Soft selected	Closed	Open
	D8000h	Open	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
T	Unidentified	On	Data is being transmitted
R	Unidentified	On	Data is being received
P	Unidentified	On	Polarity is good on 10 Base-T
P	Unidentified	Off	Polarity is reversed on 10 Base-T
L	Green	On	Network connection is good
L	Green	Off	Network connection is not good
