UNIDENTIFIED

ML2PC

NIC Type:

Ethernet

Transfer Rate:

10Mbps

Data Bus:

8-bit ISA

Topology:

Linear Bus

Wiring Type

AUI transceiver via DB-15 port

Boot ROM

Not available

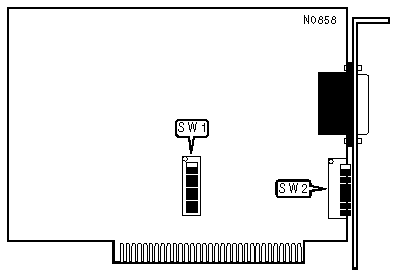

FACTORY CONFIGURED SETTINGS

Switch

Setting

SW1/1

On

SW1/2-SW1/8

Off

SW2/8

N/A

I/O ADDRESS

Address

SW2

1

SW2/1 on

31

SW2/1-SW2/5 all on

Note:The address range is in decimal form from 0-to 31. The switches are a binary representation of the addresses. When a switch is on, the corresponding bit is set to 1 and has the following decimal value: SW2/1=16, SW2/2=8, SW2/3=4, SW2/4=2, SW2/5=1.

LINE SPEED

Speed

SW2/6

SW2/7

38.4Kbits/s

Off

Off

76.8Kbits/s

Off

On

153.6Kbits/s

On

Off

307.2Kbits/s

On

On
