UNIDENTIFIED
BICC LEVEL 7 OSLAN
|
NIC Type: |
Ethernet |
|
Transfer Rate: |
10Mbps |
|
Data Bus: |
8-bit ISA |
|
Topology: |
Linear Bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

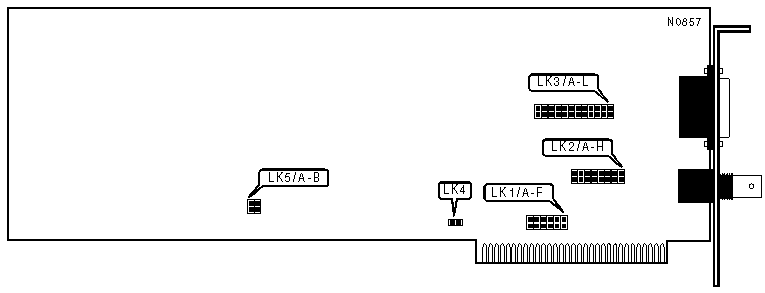

INTERRUPT REQUEST - LK1 | |||||||
|
IRQ |
Jumper A |
Jumper B |
Jumper C |
Jumper D |
Jumper E |
Jumper F | |
| » |
IRQ3 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ6 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ7 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
MEMORY ADDRESS - LK2 | |||||||||
|
Address |
A |
B |
C |
D |
E |
F |
G |
H | |
| » |
C8000h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
90000h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
98000h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
C0000h |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
D0000h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
D8000h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
E0000h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
CABLE TYPE | ||
|
Setting |
LK3 |
LK4 |
|
RG58A/U 50ohm coaxial |
Jumpers B, D, F, H, J, & L closed |
Closed |
|
AUI transceiver via DB-15 port |
Jumpers A, C, E, G, I, & K closed |
Open |
|
BUS SPEED LK5 | ||
|
Settings |
Jumper A |
Jumper B |
|
8086 CPU speeds |
Closed |
Open |
|
80286 CPU speeds |
Open |
Closed |
