ZENITH DATA SYSTEMS
LAN10FL-AT
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
200µ fiber optic cable |
|
Boot ROM |
Available |
|

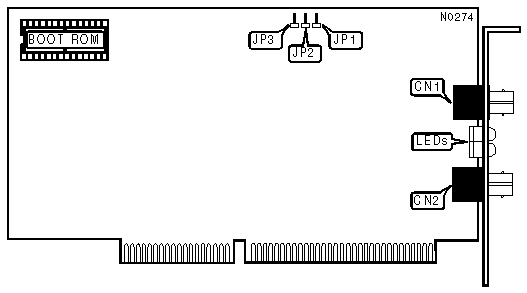

CONNECTIONS |
|
|
Purpose |
Location |
|
SMA 905 Receive Connector (gray) |
CN1 |
|
SMA 905 Transmit Connector (black) |
CN2 |
|
BASE MEMORY ADDRESS |
|
|
Address |
JP1 |
|
CC00h |
Closed |
|
D000h |
Open |
|
INTERRUPT REQUEST |
|
|
IRQ |
JP2 |
|
5 |
Closed |
|
10 |
Open |
|
ROM ENABLE |
||
|
Setting |
JP3 |
|
|
» |
Disabled |
Open |
|
|
Enabled (at address D800h) |
Closed |
|
DIAGNOSTIC LED(S) |
||
|
LED |
Status |
Condition |
|
1 |
On |
Data is being received |
|
1 |
Off |
Data is not being received |
|
2 |
On |
Data is being transmitted |
|
2 |
Off |
Data is not being transmitted |
|
3 |
On |
Network connection is good |
|
3 |
Off |
Network connection is broken |
|
4 |
On |
Collision detected on the network |
|
4 |
Off |
The network is free of collisions |
