TRENDWARE INTERNATIONAL, INC.

ETHER-T5P

Card Type

Ethernet Transceiver

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Topology

Linear Bus

Wiring Type

AUI transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Data Bus

External

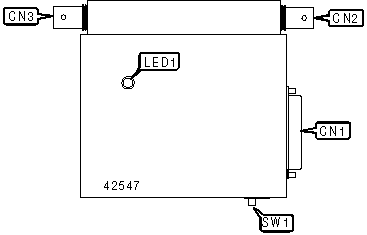

CONNECTIONS

Function

Label

Function

Label

AUI transceiver via DB-15

CN1

RG-58A/U 50ohm coaxial via piercing tap

CN3

RG-58A/U 50ohm coaxial via piercing tap

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

SEQ collision detection enabled

SW1

On

SEQ collision detection disabled

SW1

Off

DIAGNOSTIC LED

LED

Color

Status

Condition

LED1

Green

On

Power on

LED1

Green

Off

Power off
