SYNAPSE TECHNOLOGIES, INC.
TROPIC 4/16 TOKEN RING
|
NIC Type |
Token Ring |
|
Network Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Boot ROM |
Not available |
|

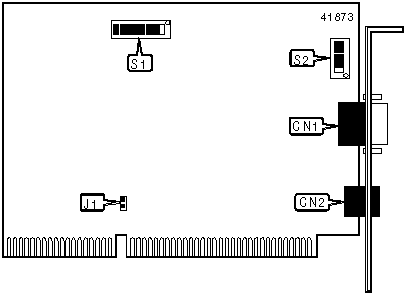

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Shielded twisted pair |
CN1 |
Unshielded twisted pair |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
External BIOS RPL enabled |
J1 |
Closed |
|
External BIOS RPL disabled |
J1 |
Open | |
| » |
Primary address selected |
S2/1 |
Off |
|
Secondary address selected |
S2/1 |
On | |
| » |
8 bit or 16 bit auto-sense selected |
S2/2 |
Off |
|
Force 8 bit bus use |
S2/2 |
On | |
|
NETWORK SPEED SELECTION | ||
|
Speed |
S2/3 | |
|
4Mbps |
Off | |
| » |
16Mbps |
On |
|
BASE I/O ADDRESS SELECTION | ||||||
|
Address |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
S1/6 |
|
CC000h |
On |
Off |
Off |
On |
On |
Off |
|
DC000h |
On |
Off |
On |
On |
On |
Off |
|
A0000h |
Off |
On |
Off |
Off |
Off |
Off |
|
A2000h |
Off |
On |
Off |
Off |
Off |
On |
|
A4000h |
Off |
On |
Off |
Off |
On |
Off |
|
F4000h |
On |
On |
On |
Off |
On |
Off |
|
F6000h |
On |
On |
On |
Off |
On |
On |
|
F8000h |
On |
On |
On |
On |
Off |
Off |
|
FA000h |
On |
On |
On |
On |
Off |
On |
|
FE000h |
On |
On |
On |
On |
On |
On |
|
INTERRUPT SELECTION | |||
|
IRQ |
S2/4 |
S2/5 | |
| » |
2 |
Off |
Off |
|
3 |
Off |
On | |
|
6 |
On |
Off | |
|
7 |
On |
On | |
|
SHARED RAM SIZE SELECTION | |||
|
Size |
S1/7 |
S1/8 | |
|
8KB |
Off |
Off | |
| » |
16KB |
Off |
On |
|
32KB |
On |
Off | |
|
64KB |
On |
On | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
16Mbps ring speed operation |
|
LED1 |
Red |
Off |
4Mbps ring speed operation |
|
LED2 |
Green |
On |
Network connection is good |
|
LED2 |
Green |
Off |
Network connection is broken |
|
Note: The location of LED1 and LED2 are unidentified | |||
