SYNAPSE TECHNOLOGIES, INC.

MCA ST/3270

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Not available

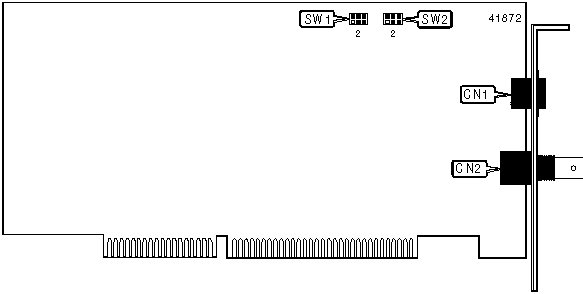

CONNECTIONS

Function

Label

Function

Label

Unshielded twisted pair port

CN1

RG-58A/U 50ohm coaxial port

CN2

CABLE TYPE SELECTION

Type

SW1

RG-58A/U 50ohm coaxial

Pins 1 & 2, 4 & 5 closed

Unshielded twisted pair

Pins 2 & 3, 5 & 6 closed

POLARITY CONFIGURATION

Polarity

SW2

Normal

Pins 2 & 3, 5 & 6 closed

Reversed

Pins 1 & 2, 4 & 5 closed
