Card Type	Network Interface Card
NIC Type	Ethernet
Network Transfer Rate	10Mbps
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair, RG-58A/U 50ohm coaxial
Data Bus	PCMCIA Type II

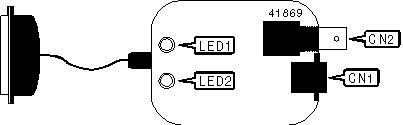

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair	CN1	RG-58A/U 50ohm coaxial	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	Blinking	Data is being transmitted/received
LED1	Green	Off	Data is not being transmitted/received
LED2	Yellow	On	Link integrity present on a 10Base-T connection
LED2	Yellow	Off	Link integrity absent on a 10Base-T connection
