TTC COMPUTER PRODUCTS

EHUB-601

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

AUI Transceiver via DB-15 port

Boot ROM

Not available

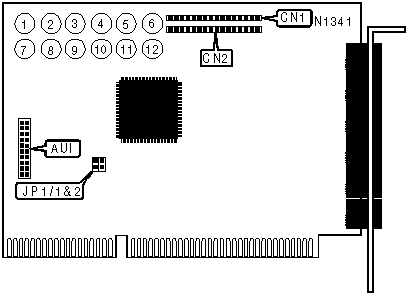

CONNECTIONS

Purpose

Location

AUI Transceiver via DB-15 port connector

AUI

Hub expansion card output connector

CN1

Hub expansion card input connector

CN2

BASE I/O ADDRESS SELECTION

Address

JP1/1

JP1/2

»

200h

Closed

Closed



220h

Closed

Open



240h

Open

Closed



260h

Open

Open

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Red

On

Data is being received on port 1

LED1

Red

Off

Data is not being received on port 1

LED2

Red

On

Data is being received on port 2

LED2

Red

Off

Data is not being received on port 2

DIAGNOSTIC LED(S) (CON’T)

LED

Color

Status

Condition

LED3

Red

On

Data is being receive on port 3

LED3

Red

Off

Data is not being received on port 3

LED4

Red

On

Data is being received on port 4

LED4

Red

Off

Data is not being received on port 4

LED5

Red

On

Data is being received on port 5

LED5

Red

Off

Data is not being received on port 5

LED6

Red

On

Data is being received on port 6

LED6

Red

Off

Data is not being received on port 6

LED7

Green

On

Network connection is good on port 1

LED7

Yellow

On

Data is being transmitted on port 1

LED7

Green

Off

Network connection is broken port 1

LED7

Yellow

Off

Data is not being transmitted on port 1

LED8

Green

On

Network connection is good on port 2

LED8

Yellow

On

Data is being transmitted on port 2

LED8

Green

Off

Network connection is broken port 2

LED8

Yellow

Off

Data is not being transmitted on port 2

LED9

Green

On

Network connection is good on port 3

LED9

Yellow

On

Data is being transmitted on port 3

LED9

Green

Off

Network connection is broken port 3

LED9

Yellow

Off

Data is not being transmitted on port 3

LED10

Green

On

Network connection is good on port 4

LED10

Yellow

On

Data is being transmitted on port 4

LED10

Green

Off

Network connection is broken port 4

LED10

Yellow

Off

Data is not being transmitted on port 4

LED11

Green

On

Network connection is good on port 5

LED11

Yellow

On

Data is being transmitted on port 5

LED11

Green

Off

Network connection is broken port 5

LED11

Yellow

Off

Data is not being transmitted on port 5

LED12

Green

On

Network connection is good on port 6

LED12

Yellow

On

Data is being transmitted on port 6

LED12

Green

Off

Network connection is broken port 6

LED12

Yellow

Off

Data is not being transmitted on port 6
