TRENDWARE INTERNATIONAL, INC.

TE-100/PCI

NIC Type

Ethernet

Transfer Rate

10/100Mbps

Data Bus

PCI

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

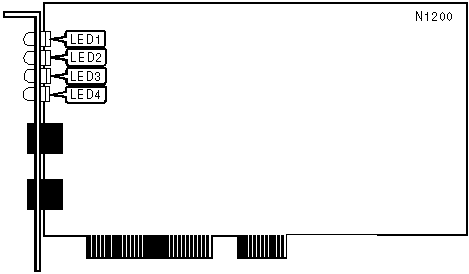

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Data transmission has been selected for 100M port

LED1

Green

Off

Data transmission has been selected for 10M port

LED2

Green

On

Power is on

LED2

Green

Blinking

Data is being transmitted

LED2

Green

Off

Power is off

LED3

Yellow

On

Network connection is good

LED3

Yellow

Blinking

Data is being received

LED3

Yellow

Off

Network connection is broken

LED4

Yellow

On

Collision is detected on Network

LED4

Yellow

Off

Collision is not detected on Network
