SVEC COMPUTER CORPORATION
FD0490I
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star & Linear Bus |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
CONNECTIONS | |
|
Purpose |
Location |
|
External LED |
J1 |
|

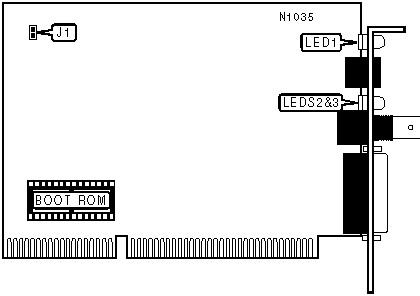

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Link status OK |
|
LED1 |
Yellow |
Off |
Link status broken |
|
LED2 |
Yellow |
On |
IRQ conflict occurring |
|
LED2 |
Yellow |
Off |
IRQ conflict not occurring |
|
LED3 |
Green |
On |
Network activity detected |
|
LED3 |
Green |
Off |
Network activity not detected |
