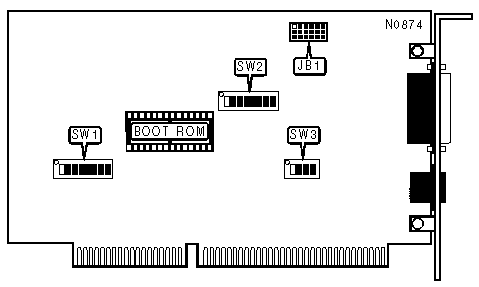

SIEMENS NIXDORF INFORMATIONSSYSTEME AG
S26361-D640-V1
|
NIC Type |
Token Ring |
|
Transfer Rate |
4Mbps 16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Boot ROM |
Available |
|
CABLE TYPE |
|
|
JB1 |
|
|
UTP |
STP |
|
|
|
|
INTERRUPT SELECTION |
|
|
IRQ |
SW1 |
|
2/9 |
SW1/8 on |
|
» 3 |
SW1/7 on |
|
5 |
SW1/6 on |
|
7 |
SW1/5 on |
|
10 |
SW1/4 on |
|
11 |
SW1/3 on |
|
12 |
SW1/2 on |
|
15 |
SW1/1 on |
|
BASE I/O AND ROM ADDRESS SELECTION |
|||
|
I/O Address |
ROM Address |
SW2/1 |
SW2/2 |
|
» 0A20h |
CC000h |
On |
On |
|
1A20h |
DC000h |
Off |
On |
|
2A20h |
CE000h |
On |
Off |
|
3A20h |
DE000h |
Off |
Off |
|
BOOT ROM CONFIGURATION |
|
|
Mode |
SW2/3 |
|
» Disabled |
Off |
|
Enabled |
On |
|
DMA MODE SELECTION |
|
|
Mode |
SW2/4 |
|
Enabled |
On |
|
Disabled |
Off |
|
DMA CHANNEL SELECTION |
|
|
Channel |
SW3 |
|
1 |
SW3/1 on |
|
3 |
SW3/2 on |
|
» 5 |
SW3/3 on |
|
6 |
SW3/4 on |
|
DATA BUS SIZE SELECTION |
|
|
Size |
SW2/5 |
|
» 8-bit |
On |
|
16-bit |
Off |
|
BUS TIMING CONFIGURATION |
|
|
Machine type |
SW2/6 |
|
» Fully compatible AT |
On |
|
Near-compatible AT |
Off |
|
BUS SPEED SELECTION |
|
|
Speed |
SW2/7 |
|
» >10MHz |
Off |
|
<=10MHz |
On |
|
NETWORK SPEED SELECTION |
|
|
Speed |
SW2/8 |
|
» 4Mbps |
On |
|
16Mbps |
Off |
