TECHNOLOGY WORKS

NUBUS ETHERNET

NIC Type:

Ethernet

Transfer Rate:

10Mbps

Data Bus:

32-Bit NuBus (Apple)

Topology:

Linear Bus

Star

Wiring Type

AUI transceiver via DB-15 port

RG58A/U 50ohm coaxial

Shielded/Unshielded twisted pair

Boot ROM

Not available

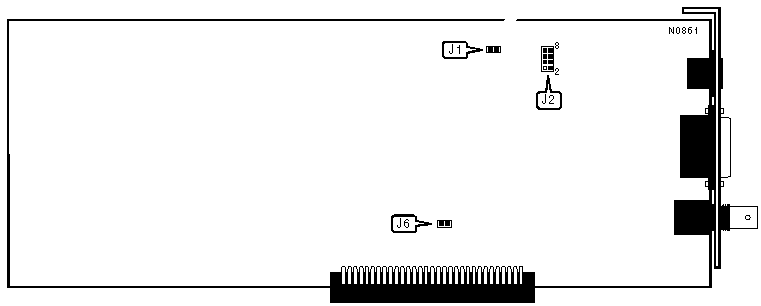

CABLE TYPE

Type

J1

J6

»

RG58A/U 50ohm coaxial

Open

Closed



AUI transceiver via DB-15 port

Open

Open



Shielded/Unshielded twisted pair

Closed

Open

TEST SETTINGS

Test

J2

»

Link and Jabber tests enabled

Pins 1 & 2 closed



All tests disabled

Pins 3 & 4 closed



SQE and Jabber tests enabled

Pins 5 & 6 closed



SQE, Link, and Jabber tests enabled

Pins 7 & 8 closed
