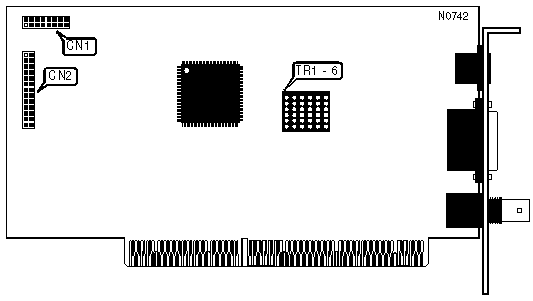

TULIP COMPUTERS

TNCC-32 CAT

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

32-bit EISA

Topology

Linear bus

Wiring Type

Shielded twisted pair

Unshielded twisted pair

Boot ROM

Not Available

CONNECTIONS

Purpose

Location

SmartPort connector

CN1

HUB expansion card connector

CN2

FACTORY CONFIGURED SETTINGS

Setting

TR1

TR2

TR3

TR4

TR5

TR6

Normal operation

Not installed

Not installed

Installed

Installed

Not installed

Not installed

Note:Interface selection for the TNCC-32 CAT adapter is done by means of manufacturer provided software. Do not reposition the terminating resistors.

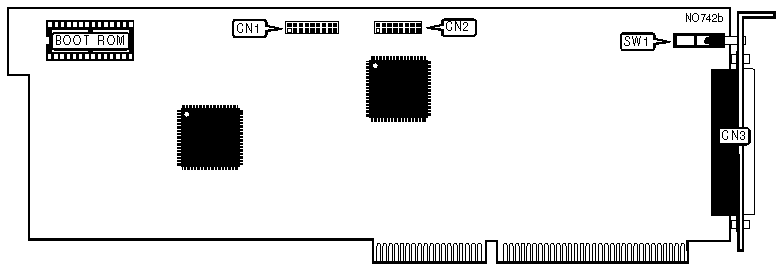

10Base-T HUB card-16

CONNECTIONS

Purpose

Location

HUB expansion card connector

CN1

SmartPort connector

CN2

DB-50 Harmonica HUB interface

CN3

Port 1 crossover switch

SW1

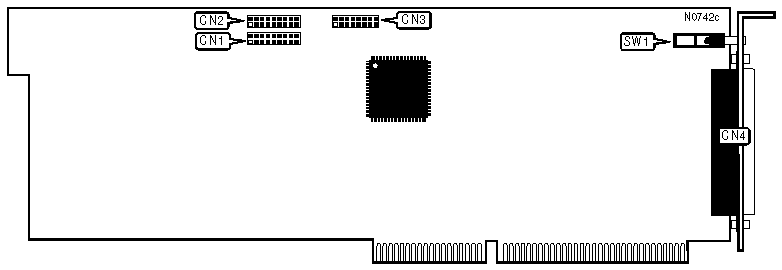

HUB expansion card

CONNECTIONS

Purpose

Location

Expansion card connector

CN1

Master card connector

CN2

SmartPort connector

CN3

DB-50 Harmonica HUB interface

CN4

Port 1 crossover switch

SW1

MISCELLANEOUS TECHNICAL NOTE

Note:The TNCC-32 connects to the 10Base-T HUB card or the HUB expansion card by means of cables provided by the manufacturer. Together, these cards interface via the 50-pin connector with a Harmonica 12-port external network HUB.
