SILCOM MANUFACTURING TECHNOLOGY, INC.
TR DIRECT/16
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
AUI transceiver via DB-15 port Shielded twisted pair Unshielded twisted pair |
|
Boot ROM |
Available |
|
BOOT ROM | |||
|
Setting |
SW1/3 |
SW1/4 | |
| » |
C8000h |
On |
On |
|
D0000h |
On |
Off | |
|
E0000h |
Off |
On | |
|
Disabled |
Off |
Off | |
|

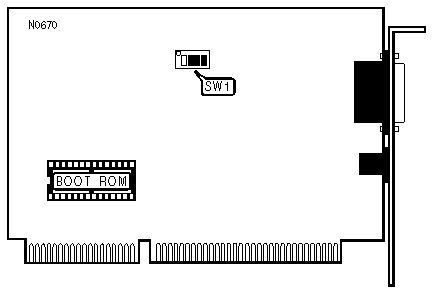

PORT ADDRESS SELECTION | |||
|
Address |
SW1/1 |
SW1/2 | |
| » |
A20h |
Off |
Off |
|
1A20h |
Off |
On | |
|
2A20 |
On |
Off | |
|
3A20 |
On |
On | |
