THOMAS-CONRAD CORPORATION

TC4047

NIC Type

Token Ring

Transfer Rate

4/16Mbps

Data Bus

16-bit EISA

Topology

Ring

Wiring Type

Shielded twisted pair

Unshielded twisted pair

Boot ROM

In Firmware

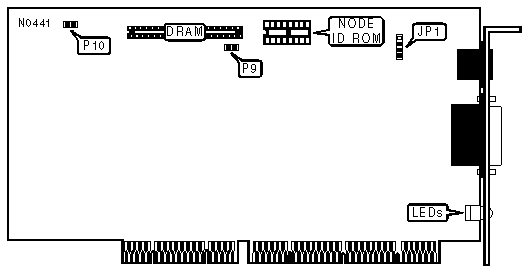

FACTORY CONFIGURED SETTINGS

Jumper

Setting

JP1

Open

P10

Open

DRAM UPGRADE CONFIGURATION

512KB Upgrade

P9

»

Installed

Open



Not installed

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Card is inserted into the ring

LED1

Green

Off

Card is not inserted into the ring

LED2

Red

On

Data is being transmitted

LED2

Red

Off

Data is not being transmitted
