TIARA COMPUTER SYSTEMS, INC.

LanCard/E * 1000

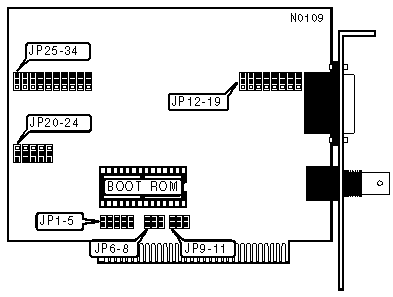

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

AUI transceiver via DB-15 port

Boot ROM

Available

INTERRUPT REQUEST

IRQ

JP1

JP2

JP3

JP4

JP5

»

3

Open

Closed

Open

Open

Open



2

Closed

Open

Open

Open

Open



4

Open

Open

Closed

Open

Open



5

Open

Open

Open

Closed

Open



7

Open

Open

Open

Open

Closed

DMA CHANNEL

Channel

JP6

JP7

JP8

JP9

JP10

JP11

»

Disabled

Open

Open

Closed

Open

Open

Closed



DMA1

Closed

Open

Open

Closed

Open

Open



DMA3

Open

Closed

Open

Open

Closed

Open

CABLE TYPE

Type

JP12 - JP19

RG-58A/U 50ohm coaxial

Pins 2 & 3 closed

Shielded/Unshielded twisted pair

Pins 2 & 3 closed

AUI transceiver via DB-15 port

Pins 1 & 2 closed

I/O BASE ADDRESS

Address

JP20

JP21

JP22

JP23

JP24

»

300h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3



000h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2



020h

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2



040h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2



060h

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2



080h

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2



0A0h

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2



0C0h

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2



0E0h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2



100h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2



120h

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2



140h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2



160h

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2



180h

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2



1A0h

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2



1C0h

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2



1E0h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2



200h

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3



220h

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3



240h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3



260h

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3



280h

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3



2A0h

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3



2C0h

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3



2E0h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3



320h

Pins 2 & 3

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3



340h

Pins 1 & 2

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3



360h

Pins 2 & 3

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3



380h

Pins 1 & 2

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3



3A0h

Pins 2 & 3

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3



3C0h

Pins 1 & 2

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3



3E0h

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Pins 2 & 3

Note:Pins designated should be in the closed position.

BASE MEMORY ADDRESS - FIRST DIGIT

Address Segment

JP25

JP26

JP27

JP28

0h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

1h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

2h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

3h

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

4h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

5h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

6h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

7h

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

8h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

9h

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Ah

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Bh

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Ch

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed

Dh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

Eh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Fh

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Note:The Address Segment is the first digit in the Base Memory Address. Refer to the following table for the

BASE MEMORY ADDRESS - LAST THREE DIGITS

Address

JP29

JP30

x000-x3FFh

Pins 2 & 3 closed

Pins 2 & 3 closed

x400-x7FFh

Pins 2 & 3 closed

Pins 1 & 2 closed

x800-xBFEh

Pins 1 & 2 closed

Pins 2 & 3 closed

xC00-xFFEh

Pins 1 & 2 closed

Pins 1 & 2 closed

Note:Place the three digit address given here behind the single digit given in the previous table to get

BOOT ROM

Setting

JP31

»

Disabled

Pins 2 & 3 closed



Enabled

Open

FACTORY CONFIGURED SETTINGS - DO NOT ALTER

Jumper

Setting

JP32

Open

JP33

Open

JP34

Open
