PROXIM, INC.

RANGELAN2 (7910, 7911)

Card Type

Network Interface Card

NIC Type

Ethernet

Boot ROM

Not available

Network Transfer Rate

1.6Mbps

Topology

Point-to-point, Point-to-multipoint, Infrastructure

Wiring Type

RS-232 serial

Maximum Modem Rate

115200bps

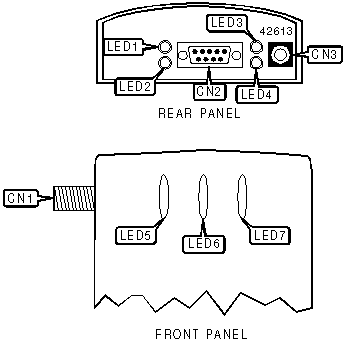

CONNECTIONS

Function

Label

Function

Label

Antenna connector

CN1

DC power connector

CN3

RS-232 (DB-9) connector

CN2



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Station type and domain set by software

LED1

Yellow

Off

Station type and domain set by switches

LED2

Green

Off

Non-functioning LED - reserved for future use

LED3

Green

On

Operating as a master

LED3

Green

Off

Not operating as a master

LED4

Yellow

On

Operating as a station

LED4

Yellow

Off

Not operating as a station

LED5

Green

On

Operating in normal mode

LED5

Yellow

On

Initializing hardware

LED5

Red

On

Problem with hardware

LED6

Yellow

Blinking

Data is being received wirelessly

LED6

Yellow

Off

Data is not being received wirelessly

LED7

Green

Blinking

Data is being received on serial connection

LED7

Green

Off

Data is not being received on serial connection

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Station mode

SW2

Station



Master mode

SW2

Master

DOMAIN SELECTION

Setting

Label

Position

»

Use domain 0

SW1

0



Use domain 1

SW1

1



Use domain 2

SW1

2



Use domain 3

SW1

3



Use domain 4

SW1

4



Use domain 5

SW1

5



Use domain 6

SW1

6



Use domain 7

SW1

7



Use domain 8

SW1

8



Configuration menu

SW1

9

MISCELLANEOUS TECHNICAL NOTES

Model 7910 operates at 100 mW. Model 7911 operates at 500 mW.
