PROXIM, INC.

RANGELAN2 7530

Card Type

Network Interface Card

NIC Type

Token Ring

Boot ROM

Not available

Radio Data Rate

1.6Mbps

Network Transfer Rate

16Mbps/4Mbps

Topology

Ring

Wiring Type

Shielded twisted pair

Unshielded twisted pair

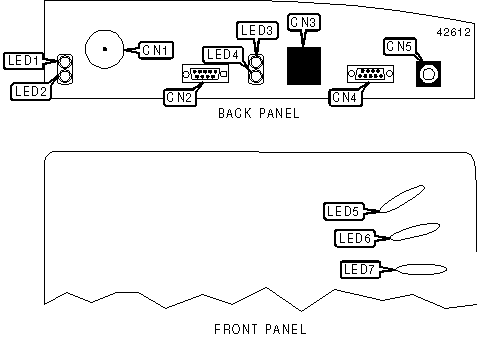

CONNECTIONS

Function

Label

Function

Label

Antenna connector

CN1

DB-9 STP connector

CN4

DB-9 serial connector

CN2

DC power connector

CN5

RJ-45 UTP connector

CN3



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Operating as a Master

LED1

Green

Off

Not operating as a Master

LED2

Unidentified

Off

Non-functioning LED - reserved for future use

LED3

Green

On

Operating at 4Mbps

LED3

Green

Off

Not operating at 4Mbps

LED4

Yellow

On

Operating at 16Mbps

LED4

Yellow

Off

Not operating at 16Mbps

LED5

Green

On

Operating in normal mode

LED5

Yellow

On

Power to hardware is on

LED5

Red

On

Problem with hardware

LED6

Yellow

Blinking

Data is being received wirelessly

LED6

Yellow

Off

Data is not being received wirelessly

LED7

Green

Blinking

Data is being received from Ethernet

LED7

Green

Off

Data is not being received from Ethernet
