PATTON ELECTRONICS COMPANY

2126

Card Type

Parallel Print Server

Chip Set

Unidentified

NIC Type

Ethernet

Boot ROM

Not available

Network Transfer Rate

10Mbps

Wiring Type

RG-58A/U 50ohm coaxial

Data Bus

External

CONNECTIONS

Function

Label

Function

Label

Centronics parallel port

CN1

Power

CN3

RG-58A/U connector

CN2

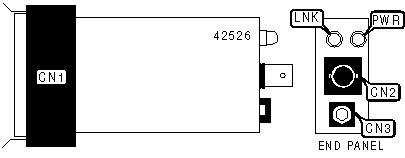

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LNK

Unidentified

On

Network link is good

LNK

Unidentified

Off

Network link is broken

PWR

Unidentified

On

Power is on

PWR

Unidentified

Off

Power is off
