Card Type	FDDI
Chip Set	Motorola
Data Bus	32-bit PCI
Maximum Network Rate	100Mbps
Topology	Ring
Wiring Type	Fiber optic cable
Boot ROM	Not available

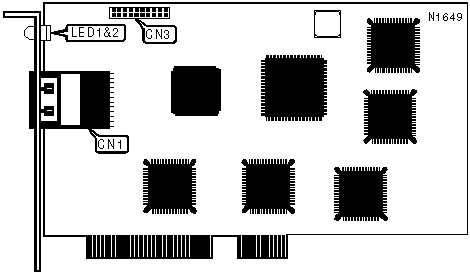

CONNECTIONS
Function	Label	Function	Label
Fiber optic cable via MIC connector	CN1	Unidentified	CN3

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Network connection is good
LED1	Yellow	Off	Network connection is broken
LED2	Green	On	Secondary ring is functioning
LED2	Green	Off	Primary ring is functioning
Note: The exact location of individual LEDs is unidentified.
